FGPF4565

In Stock: 1,159

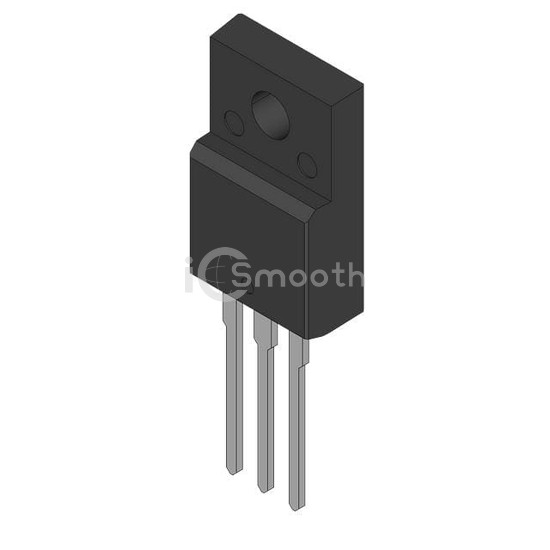

FGPF4565 - Fairchild Semiconductor - Transistors - IGBTs - Single
REF: FGPF4565 Fairchild Semiconductor
FGPF4565

Fairchild Semiconductor

INSULATED GATE BIPOLAR TRANSISTO

FGPF4565 is a Transistors - IGBTs - Single manufactured by Fairchild Semiconductor. INSULATED GATE BIPOLAR TRANSISTO. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-220-3 Full Pack, power - max 30 W.

Datasheet Request a Quote

In Stock: 1,159

Specifications

17 parameters
Product StatusActive
IGBT TypeTrench Field Stop
Voltage - Collector Emitter Breakdown (Max)650 V
Current - Collector (Ic) (Max)-
Current - Collector Pulsed (Icm)170 A
Vce(on) (Max) @ Vge, Ic1.88V @ 15V, 30A
Power - Max30 W
Switching Energy-
Input TypeStandard
Gate Charge40.3 nC
Td (on/off) @ 25°C11.2ns/40.8ns
Test Condition400V, 30A, 5Ohm, 15V
Reverse Recovery Time (trr)-
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-220-3 Full Pack
Supplier Device PackageTO-220F-3
