FGP20N6S2D

In Stock: 2,811

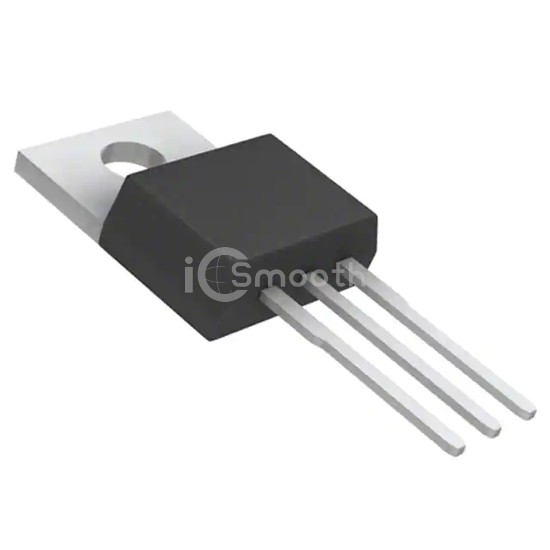

FGP20N6S2D - Fairchild Semiconductor - Transistors - IGBTs - Single
REF: FGP20N6S2D Fairchild Semiconductor
FGP20N6S2D

Fairchild Semiconductor

N-CHANNEL IGBT

FGP20N6S2D is a Transistors - IGBTs - Single manufactured by Fairchild Semiconductor. N-CHANNEL IGBT. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-220-3, current - collector (ic) (max) 28 A.

Datasheet Request a Quote

In Stock: 2,811

Specifications

17 parameters
Product StatusObsolete
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)28 A
Current - Collector Pulsed (Icm)40 A
Vce(on) (Max) @ Vge, Ic2.7V @ 15V, 7A
Power - Max125 W
Switching Energy25µJ (on), 58µJ (off)
Input TypeStandard
Gate Charge30 nC
Td (on/off) @ 25°C7.7ns/87ns
Test Condition390V, 7A, 25Ohm, 15V
Reverse Recovery Time (trr)31 ns
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-220-3
Supplier Device PackageTO-220-3
