FGH40N65UFDTU-F085

In Stock: 210

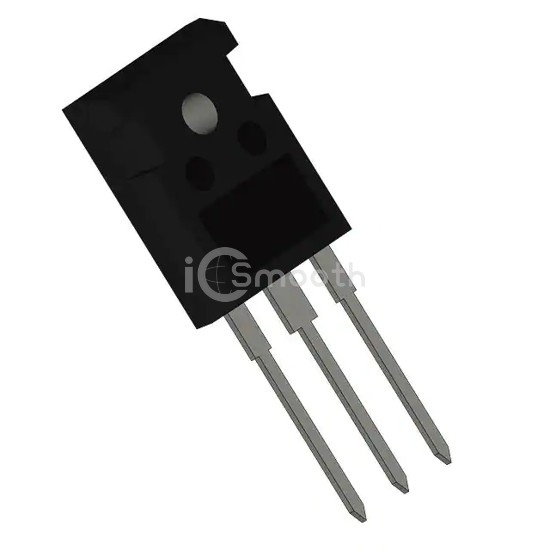

FGH40N65UFDTU-F085 - Fairchild Semiconductor - Transistors - IGBTs - Single
REF: FGH40N65UFDTU-F085 Fairchild Semiconductor
FGH40N65UFDTU-F085

Fairchild Semiconductor

INSULATED GATE BIPOLAR TRANSISTO

FGH40N65UFDTU-F085 is a Transistors - IGBTs - Single manufactured by Fairchild Semiconductor. INSULATED GATE BIPOLAR TRANSISTO. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-247-3, current - collector (ic) (max) 80 A.

Datasheet Request a Quote

In Stock: 210

Specifications

17 parameters
Product StatusActive
IGBT TypeField Stop
Voltage - Collector Emitter Breakdown (Max)650 V
Current - Collector (Ic) (Max)80 A
Current - Collector Pulsed (Icm)120 A
Vce(on) (Max) @ Vge, Ic2.4V @ 15V, 40A
Power - Max290 W
Switching Energy1.28mJ (on), 500µJ (off)
Input TypeStandard
Gate Charge119 nC
Td (on/off) @ 25°C23ns/126ns
Test Condition400V, 40A, 10Ohm, 15V
Reverse Recovery Time (trr)65 ns
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-3
Supplier Device PackageTO-247
