Name: FGH40N60SMDF-F085
Brand: Fairchild Semiconductor
SKU: FGH40N60SMDF-F085
Availability: InStock

REF: FGH40N60SMDF-F085 Fairchild Semiconductor

FGH40N60SMDF-F085

INSULATED GATE BIPOLAR TRANSISTO

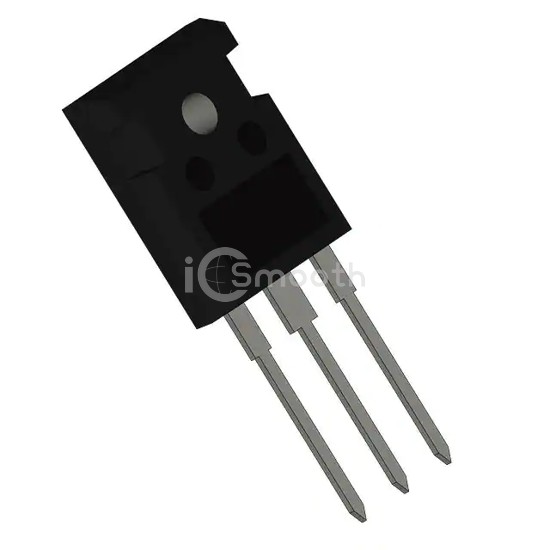

FGH40N60SMDF-F085 is a Transistors - IGBTs - Single manufactured by Fairchild Semiconductor. INSULATED GATE BIPOLAR TRANSISTO. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-247-3, current - collector (ic) (max) 80 A.

Datasheet Request a Quote

In Stock: 5,340

Specifications

17 parameters

Product Status	Active
IGBT Type	Field Stop
Voltage - Collector Emitter Breakdown (Max)	600 V
Current - Collector (Ic) (Max)	80 A
Current - Collector Pulsed (Icm)	120 A
Vce(on) (Max) @ Vge, Ic	2.5V @ 15V, 40A
Power - Max	349 W
Switching Energy	1.3mJ (on), 260µJ (off)
Input Type	Standard

Gate Charge	122 nC
Td (on/off) @ 25°C	18ns/110ns
Test Condition	400V, 40A, 6Ohm, 15V
Reverse Recovery Time (trr)	90 ns
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-247-3
Supplier Device Package	TO-247
