FGA20S140P

In Stock: 3,595

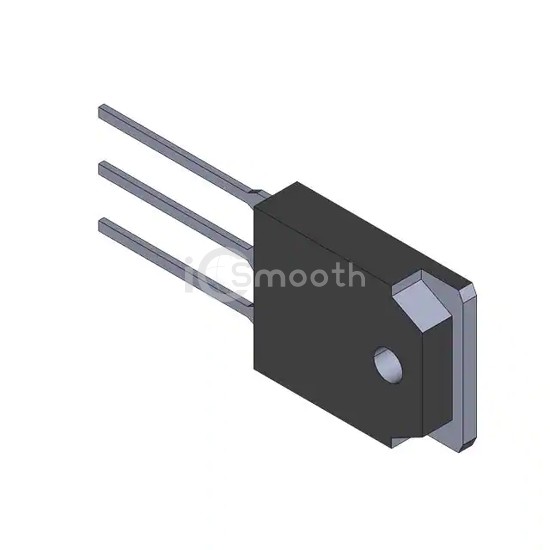

FGA20S140P - Fairchild Semiconductor - Transistors - IGBTs - Single
REF: FGA20S140P Fairchild Semiconductor
FGA20S140P

Fairchild Semiconductor

INSULATED GATE BIPOLAR TRANSISTO

FGA20S140P is a Transistors - IGBTs - Single manufactured by Fairchild Semiconductor. INSULATED GATE BIPOLAR TRANSISTO. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-3P-3, SC-65-3, current - collector (ic) (max) 40 A.

Datasheet Request a Quote

In Stock: 3,595

Specifications

17 parameters
Product StatusActive
IGBT TypeTrench Field Stop
Voltage - Collector Emitter Breakdown (Max)1400 V
Current - Collector (Ic) (Max)40 A
Current - Collector Pulsed (Icm)60 A
Vce(on) (Max) @ Vge, Ic2.4V @ 15V, 20A
Power - Max272 W
Switching Energy-
Input TypeStandard
Gate Charge203.5 nC
Td (on/off) @ 25°C-
Test Condition-
Reverse Recovery Time (trr)-
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-3P-3, SC-65-3
Supplier Device PackageTO-3PN
