Name: FGA15N120ANTDTU
Brand: Fairchild Semiconductor
SKU: FGA15N120ANTDTU
Availability: InStock

REF: FGA15N120ANTDTU Fairchild Semiconductor

FGA15N120ANTDTU

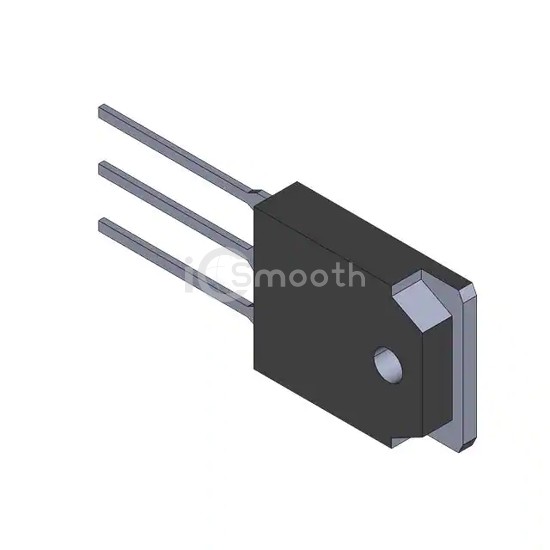

IGBT, 30A, 1200V, N-CHANNEL

FGA15N120ANTDTU is a Transistors - IGBTs - Single manufactured by Fairchild Semiconductor. IGBT, 30A, 1200V, N-CHANNEL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-3P-3, SC-65-3, current - collector (ic) (max) 30 A.

Datasheet Request a Quote

In Stock: 5,233

Specifications

17 parameters

Product Status	Obsolete
IGBT Type	NPT and Trench
Voltage - Collector Emitter Breakdown (Max)	1200 V
Current - Collector (Ic) (Max)	30 A
Current - Collector Pulsed (Icm)	45 A
Vce(on) (Max) @ Vge, Ic	2.4V @ 15V, 15A
Power - Max	186 W
Switching Energy	3mJ (on), 600µJ (off)
Input Type	Standard

Gate Charge	120 nC
Td (on/off) @ 25°C	15ns/160ns
Test Condition	600V, 15A, 10Ohm, 15V
Reverse Recovery Time (trr)	330 ns
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-3P-3, SC-65-3
Supplier Device Package	TO-3P
