Name: FDMF6823B
Brand: Fairchild Semiconductor
SKU: FDMF6823B
Price: 5.09 USD
Availability: InStock

REF: FDMF6823B Fairchild Semiconductor

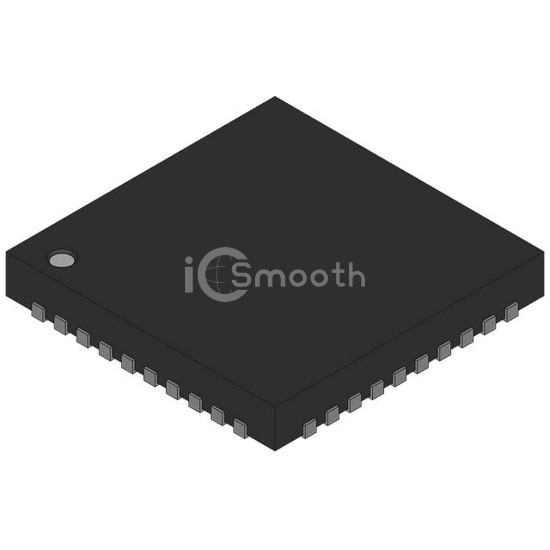

FDMF6823B

HALF BRIDGE BASED MOSFET DRIVER,

FDMF6823B is a PMIC - Full, Half-Bridge Drivers manufactured by Fairchild Semiconductor. HALF BRIDGE BASED MOSFET DRIVER,. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 4.5V ~ 5.5V, package / case 40-TFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 387

Tiered Pricing USD

1+ $5.0900 —

10+ $3.3810 -34%

100+ $2.4120 -53%

500+ $1.9985 -61%

1,000+ $1.8750 -63% BEST

Specifications

17 parameters

Product Status	Active
Output Configuration	Half Bridge
Applications	Synchronous Buck Converters
Interface	Logic, PWM
Load Type	Inductive, Capacitive, Resistive
Technology	DrMOS, Power MOSFET
Rds On (Typ)	1Ohm LS, 1Ohm HS
Current - Output / Channel	55A
Current - Peak Output	55A

Voltage - Supply	4.5V ~ 5.5V
Voltage - Load	4.5V ~ 5.5V
Operating Temperature	-40°C ~ 150°C (TJ)
Features	Bootstrap Circuit
Fault Protection	Over Temperature, Shoot-Through, UVLO
Mounting Type	Surface Mount
Package / Case	40-TFQFN Exposed Pad
Supplier Device Package	40-PQFN (6x6)
