FAN7390M1

In Stock: 6,133

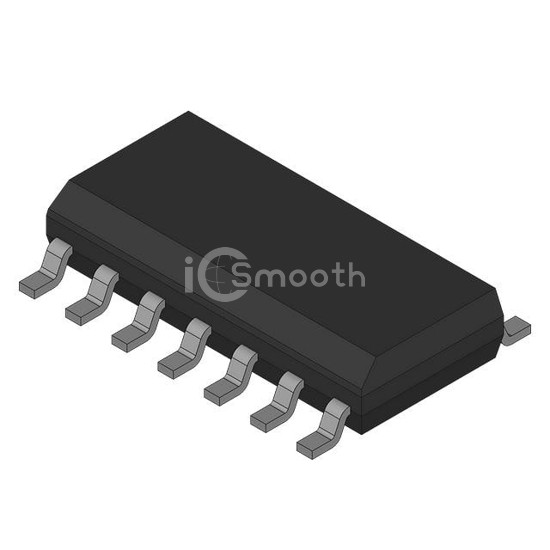

FAN7390M1 - Fairchild Semiconductor - PMIC - Gate Drivers
REF: FAN7390M1 Fairchild Semiconductor
FAN7390M1

Fairchild Semiconductor

HALF BRIDGE PERIPHERAL DRIVER

FAN7390M1 is a PMIC - Gate Drivers manufactured by Fairchild Semiconductor. HALF BRIDGE PERIPHERAL DRIVER. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 10V ~ 22V, package / case 14-SOIC (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 6,133

Specifications

15 parameters
Product StatusObsolete
Driven ConfigurationHalf-Bridge
Channel TypeIndependent
Number of Drivers2
Gate TypeIGBT, N-Channel MOSFET
Voltage - Supply10V ~ 22V
Logic Voltage - VIL, VIH1.2V, 2.5V
Current - Peak Output (Source, Sink)4.5A, 4.5A
Input TypeNon-Inverting
High Side Voltage - Max (Bootstrap)600 V
Rise / Fall Time (Typ)25ns, 20ns
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case14-SOIC (0.154", 3.90mm Width)
Supplier Device Package14-SOP
