FAN5109MX

In Stock: 342,966

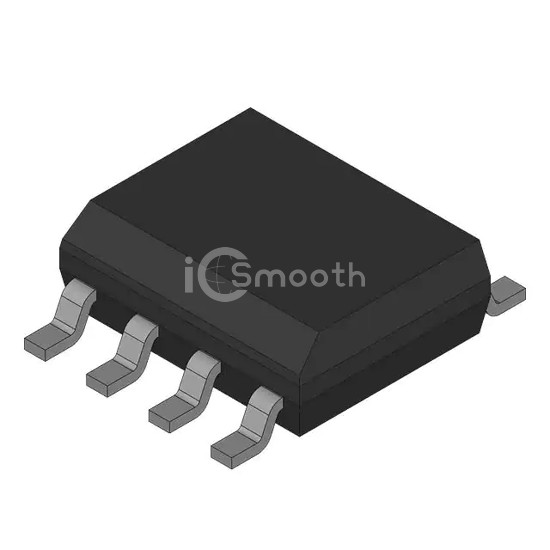

FAN5109MX - Fairchild Semiconductor - PMIC - Gate Drivers
REF: FAN5109MX Fairchild Semiconductor
FAN5109MX

Fairchild Semiconductor

BUFFER/INVERTER MOSFET DRIVER

FAN5109MX is a PMIC - Gate Drivers manufactured by Fairchild Semiconductor. BUFFER/INVERTER MOSFET DRIVER. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 85°C (TA), voltage - supply 10V ~ 13.5V, package / case 8-SOIC (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 342,966

Specifications

15 parameters
Product StatusActive
Driven ConfigurationHigh-Side and Low-Side
Channel TypeSynchronous
Number of Drivers2
Gate TypeN-Channel MOSFET
Voltage - Supply10V ~ 13.5V
Logic Voltage - VIL, VIH0.8V, 2V
Current - Peak Output (Source, Sink)2A, 3A
Input TypeNon-Inverting
High Side Voltage - Max (Bootstrap)12 V
Rise / Fall Time (Typ)25ns, 15ns
Operating Temperature0°C ~ 85°C (TA)
Mounting TypeSurface Mount
Package / Case8-SOIC (0.154", 3.90mm Width)
Supplier Device Package8-SOIC
