FAN501MPX

In Stock: 35,000

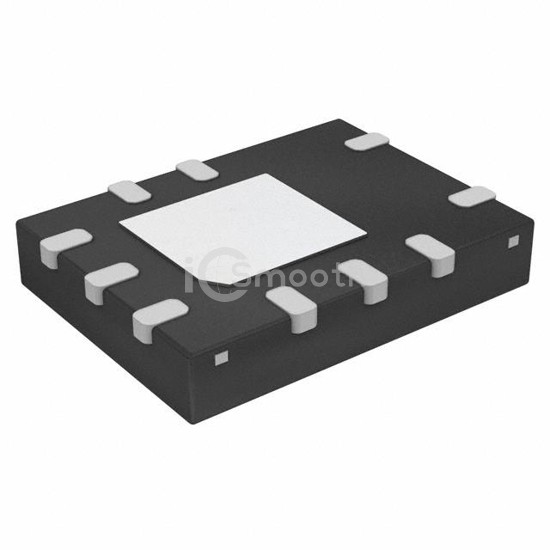

FAN501MPX - Fairchild Semiconductor - PMIC - AC DC Converters, Offline Switchers
REF: FAN501MPX Fairchild Semiconductor
FAN501MPX

Fairchild Semiconductor

IC OFFLINE SWITCH FLYBACK 10MLP

FAN501MPX is a PMIC - AC DC Converters, Offline Switchers manufactured by Fairchild Semiconductor. IC OFFLINE SWITCH FLYBACK 10MLP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply (vcc/vdd) 5.8V ~ 30V, package / case 10-WQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 35,000

Specifications

16 parameters
Product StatusActive
Output IsolationIsolated
Internal Switch(s)No
Voltage - Breakdown-
TopologyFlyback
Voltage - Start Up17.5 V
Voltage - Supply (Vcc/Vdd)5.8V ~ 30V
Duty Cycle68.5%
Frequency - Switching85kHz ~ 140kHz
Power (Watts)-
Fault ProtectionCurrent Limiting, Over Temperature, Over Voltage
Control Features-
Operating Temperature-40°C ~ 125°C (TA)
Package / Case10-WQFN Exposed Pad
Supplier Device Package10-MLP (4x3)
Mounting TypeSurface Mount
