Name: FAN25800AUC33X
Brand: Fairchild Semiconductor
SKU: FAN25800AUC33X
Price: 0.26 USD
Availability: InStock

REF: FAN25800AUC33X Fairchild Semiconductor

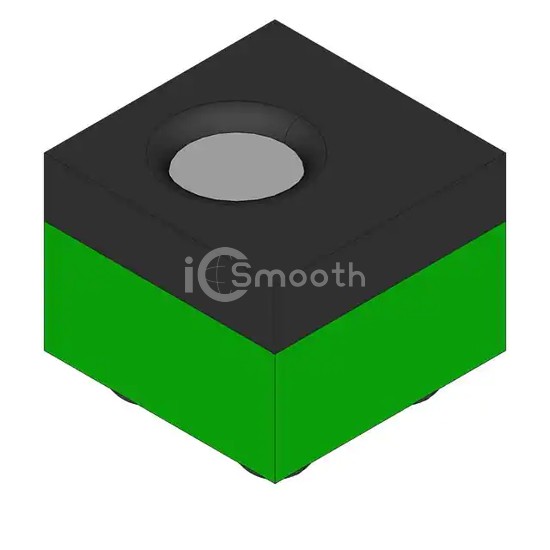

FAN25800AUC33X

Fairchild Semiconductor

IC REG LINEAR 3.3V 500MA 4WLCSP

FAN25800AUC33X is a PMIC - Voltage Regulators - Linear manufactured by Fairchild Semiconductor. IC REG LINEAR 3.3V 500MA 4WLCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 4-XFBGA, WLCSP, current - output 500mA.

Datasheet Request a Quote

In Stock: 83,012

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	5.5V
Voltage - Output (Min/Fixed)	3.3V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.13V @ 250mA
Current - Output	500mA

Current - Quiescent (Iq)	25 µA
Current - Supply (Max)	-
PSRR	85dB ~ 68dB (100Hz ~ 50Hz)
Control Features	Enable
Protection Features	Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	4-XFBGA, WLCSP
Supplier Device Package	4-WLCSP (0.65x0.65)
