Name: FAN1581MX
Brand: Fairchild Semiconductor
SKU: FAN1581MX
Price: 1.91 USD
Availability: InStock

REF: FAN1581MX Fairchild Semiconductor

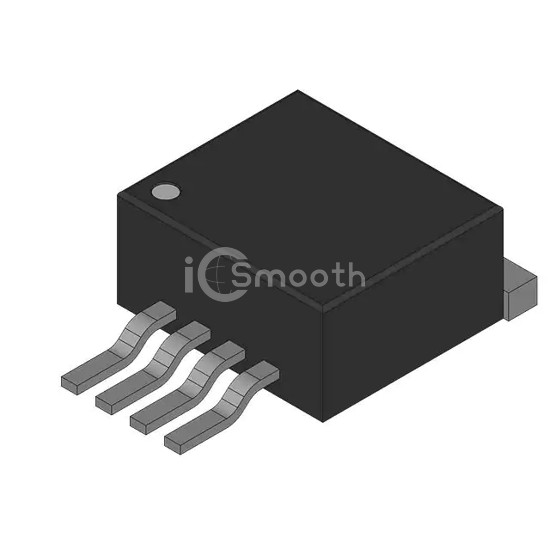

FAN1581MX

IC REG LINEAR POS ADJ 5A TO263-5

FAN1581MX is a PMIC - Voltage Regulators - Linear manufactured by Fairchild Semiconductor. IC REG LINEAR POS ADJ 5A TO263-5. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 125°C, package / case TO-263-6, D²Pak (5 Leads + Tab), TO-263BA, current - output 5A.

Datasheet Request a Quote

In Stock: 78,360

Specifications

18 parameters

Product Status	Obsolete
Output Configuration	Positive
Output Type	Adjustable
Number of Regulators	1
Voltage - Input (Max)	7V
Voltage - Output (Min/Fixed)	1.25V
Voltage - Output (Max)	5.7V
Voltage Dropout (Max)	1.18V @ 5A
Current - Output	5A

Current - Quiescent (Iq)	6 mA
Current - Supply (Max)	-
PSRR	80dB (120Hz)
Control Features	-
Protection Features	Over Current, Over Temperature
Operating Temperature	0°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	TO-263-6, D²Pak (5 Leads + Tab), TO-263BA
Supplier Device Package	TO-263-5
