FAN1538PAX

In Stock: 262,000

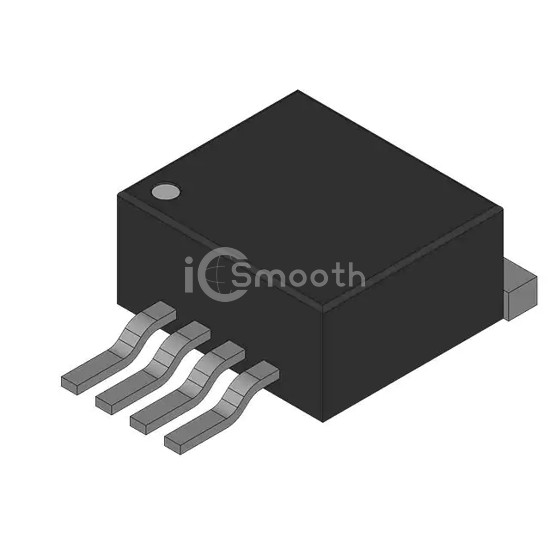

FAN1538PAX - Fairchild Semiconductor - PMIC - Voltage Regulators - Linear
REF: FAN1538PAX Fairchild Semiconductor
FAN1538PAX

Fairchild Semiconductor

IC REG LINEAR FIXED LDO REG

FAN1538PAX is a PMIC - Voltage Regulators - Linear manufactured by Fairchild Semiconductor. IC REG LINEAR FIXED LDO REG. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 125°C (TA), package / case SPak-5 (5 leads + Tab), current - output 1A, 1A.

Datasheet Request a Quote

In Stock: 262,000

Specifications

18 parameters
Product StatusActive
Output ConfigurationPositive
Output TypeFixed
Number of Regulators2
Voltage - Input (Max)5.25V
Voltage - Output (Min/Fixed)3.3V, 2.5V
Voltage - Output (Max)-
Voltage Dropout (Max)-
Current - Output1A, 1A
Current - Quiescent (Iq)15 mA
Current - Supply (Max)-
PSRR-
Control FeaturesSoft Start
Protection FeaturesOver Current, Over Temperature, Under Voltage Lockout (UVLO)
Operating Temperature0°C ~ 125°C (TA)
Mounting TypeSurface Mount
Package / CaseSPak-5 (5 leads + Tab)
Supplier Device PackageS-PAK-5
