DM74LS20M

In Stock: 2,474

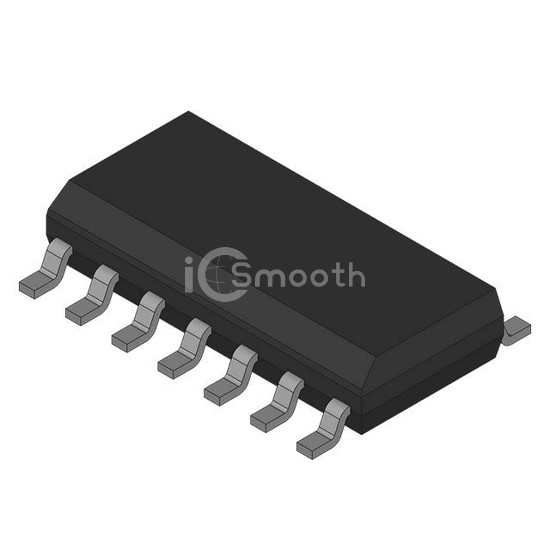

DM74LS20M - Fairchild Semiconductor - Logic - Gates and Inverters
REF: DM74LS20M Fairchild Semiconductor
DM74LS20M

Fairchild Semiconductor

NAND GATE, LS SERIES TTL

DM74LS20M is a Logic - Gates and Inverters manufactured by Fairchild Semiconductor. NAND GATE, LS SERIES TTL. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C, voltage - supply 4.75V ~ 5.25V, package / case 14-SOIC (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 2,474

Specifications

15 parameters
Product StatusActive
Logic TypeNAND Gate
Number of Circuits2
Number of Inputs4
Features-
Voltage - Supply4.75V ~ 5.25V
Current - Quiescent (Max)2.2 mA
Current - Output High, Low400µA, 8mA
Logic Level - Low0.8V
Logic Level - High2V
Max Propagation Delay @ V, Max CL15ns @ 5V, 50pF
Operating Temperature0°C ~ 70°C
Mounting TypeSurface Mount
Supplier Device Package14-SOIC
Package / Case14-SOIC (0.154", 3.90mm Width)
