DM74LS109AM

In Stock: 9,437

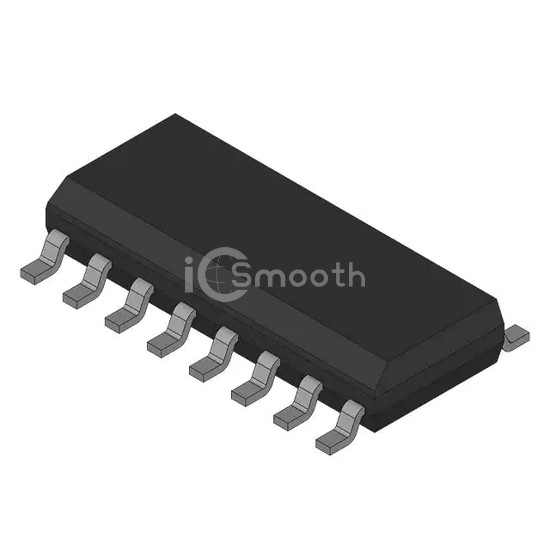

DM74LS109AM - Fairchild Semiconductor - Logic - Flip Flops
REF: DM74LS109AM Fairchild Semiconductor
DM74LS109AM

Fairchild Semiconductor

J-K FLIP-FLOP

DM74LS109AM is a Logic - Flip Flops manufactured by Fairchild Semiconductor. J-K FLIP-FLOP. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C (TA), voltage - supply 4.75V ~ 5.25V, package / case 16-SOIC (0.209", 5.30mm Width).

Datasheet Request a Quote

In Stock: 9,437

Specifications

17 parameters
Product StatusActive
FunctionSet(Preset) and Reset
TypeJK Type
Output TypeComplementary
Number of Elements2
Number of Bits per Element1
Clock Frequency20 MHz
Max Propagation Delay @ V, Max CL35ns @ 5V, 50pF
Trigger TypePositive Edge
Current - Output High, Low400µA, 8mA
Voltage - Supply4.75V ~ 5.25V
Current - Quiescent (Iq)8 mA
Input Capacitance-
Operating Temperature0°C ~ 70°C (TA)
Mounting TypeSurface Mount
Supplier Device Package16-SOEIAJ
Package / Case16-SOIC (0.209", 5.30mm Width)
