DM74LS05SJ

In Stock: 2,893

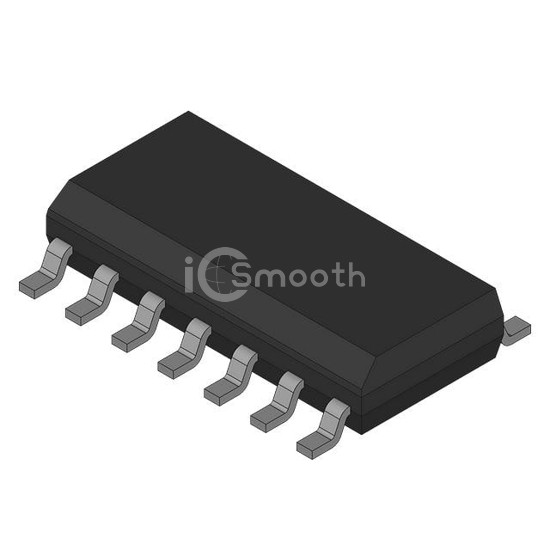

DM74LS05SJ - Fairchild Semiconductor - Logic - Gates and Inverters
REF: DM74LS05SJ Fairchild Semiconductor
DM74LS05SJ

Fairchild Semiconductor

INVERTER, LS SERIES

DM74LS05SJ is a Logic - Gates and Inverters manufactured by Fairchild Semiconductor. INVERTER, LS SERIES. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C, voltage - supply 4.75V ~ 5.25V, package / case 14-SOIC (0.209", 5.30mm Width).

Datasheet Request a Quote

In Stock: 2,893

Specifications

15 parameters
Product StatusActive
Logic TypeInverter
Number of Circuits6
Number of Inputs1
FeaturesOpen Collector
Voltage - Supply4.75V ~ 5.25V
Current - Quiescent (Max)6.6 mA
Current - Output High, Low100µA, 8mA
Logic Level - Low0.8V
Logic Level - High2V
Max Propagation Delay @ V, Max CL45ns @ 5V, 50pF
Operating Temperature0°C ~ 70°C
Mounting TypeSurface Mount
Supplier Device Package14-SOP
Package / Case14-SOIC (0.209", 5.30mm Width)
