DM74ALS109AN

In Stock: 5,364

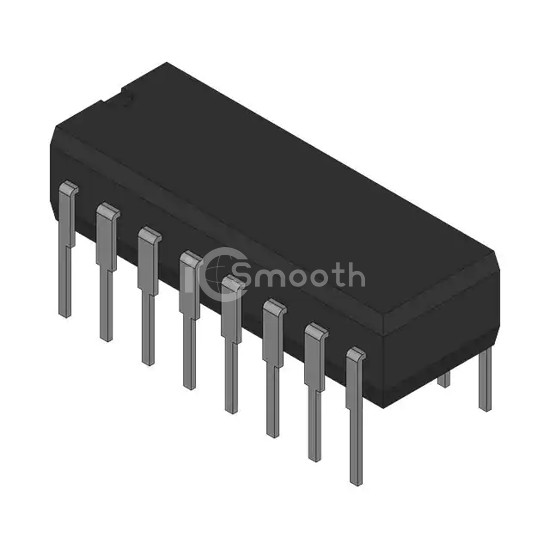

DM74ALS109AN - Fairchild Semiconductor - Logic - Flip Flops
REF: DM74ALS109AN Fairchild Semiconductor
DM74ALS109AN

Fairchild Semiconductor

IC FF JK TYPE DUAL 1BIT 16DIP

DM74ALS109AN is a Logic - Flip Flops manufactured by Fairchild Semiconductor. IC FF JK TYPE DUAL 1BIT 16DIP. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 70°C (TA), voltage - supply 4.5V ~ 5.5V, package / case 16-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 5,364

Specifications

17 parameters
Product StatusObsolete
FunctionSet(Preset) and Reset
TypeJK Type
Output TypeComplementary
Number of Elements2
Number of Bits per Element1
Clock Frequency34 MHz
Max Propagation Delay @ V, Max CL18ns @ 5V, 50pF
Trigger TypePositive Edge
Current - Output High, Low400µA, 8mA
Voltage - Supply4.5V ~ 5.5V
Current - Quiescent (Iq)4 mA
Input Capacitance-
Operating Temperature0°C ~ 70°C (TA)
Mounting TypeThrough Hole
Supplier Device Package16-PDIP
Package / Case16-DIP (0.300", 7.62mm)
