DM74ALS109AM

In Stock: 7,096
DM74ALS109AM - Fairchild Semiconductor - Logic - Flip Flops
REF: DM74ALS109AM Fairchild Semiconductor
DM74ALS109AM

Fairchild Semiconductor

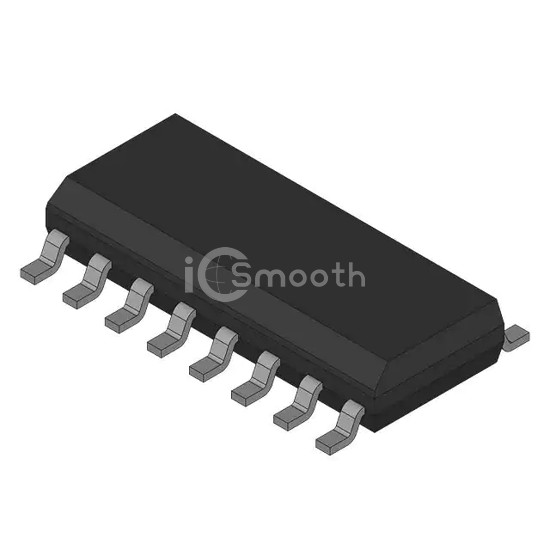

IC FF JK TYPE DUAL 1BIT 16SOIC

DM74ALS109AM is a Logic - Flip Flops manufactured by Fairchild Semiconductor. IC FF JK TYPE DUAL 1BIT 16SOIC. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C (TA), voltage - supply 4.5V ~ 5.5V, package / case 16-SOIC (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 7,096

Specifications

17 parameters
Product StatusObsolete
FunctionSet(Preset) and Reset
TypeJK Type
Output TypeComplementary
Number of Elements2
Number of Bits per Element1
Clock Frequency34 MHz
Max Propagation Delay @ V, Max CL18ns @ 5V, 50pF
Trigger TypePositive Edge
Current - Output High, Low400µA, 8mA
Voltage - Supply4.5V ~ 5.5V
Current - Quiescent (Iq)4 mA
Input Capacitance-
Operating Temperature0°C ~ 70°C (TA)
Mounting TypeSurface Mount
Supplier Device Package16-SOIC
Package / Case16-SOIC (0.154", 3.90mm Width)
