DM74ALS09M

In Stock: 6,411

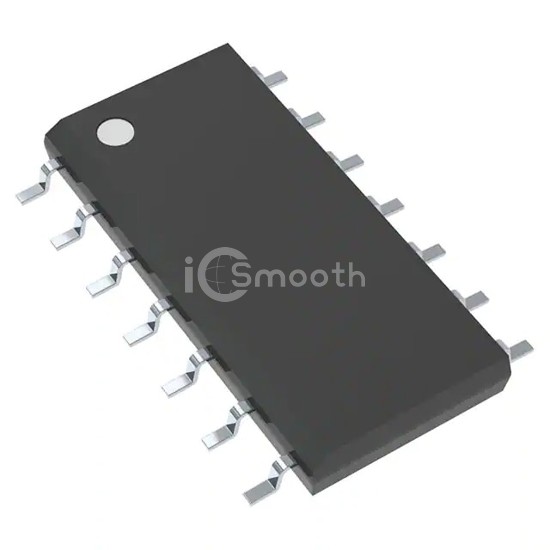

DM74ALS09M - Fairchild Semiconductor - Logic - Gates and Inverters
REF: DM74ALS09M Fairchild Semiconductor
DM74ALS09M

Fairchild Semiconductor

IC GATE AND OPEN 4CH 2-IN 14SOIC

DM74ALS09M is a Logic - Gates and Inverters manufactured by Fairchild Semiconductor. IC GATE AND OPEN 4CH 2-IN 14SOIC. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C, voltage - supply 4.5V ~ 5.5V, package / case 14-SOIC (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 6,411

Specifications

15 parameters
Product StatusObsolete
Logic TypeAND Gate
Number of Circuits4
Number of Inputs2
FeaturesOpen Collector
Voltage - Supply4.5V ~ 5.5V
Current - Quiescent (Max)-
Current - Output High, Low-, 8mA
Logic Level - Low0.8V
Logic Level - High2V
Max Propagation Delay @ V, Max CL54ns @ 5V, 50pF
Operating Temperature0°C ~ 70°C
Mounting TypeSurface Mount
Supplier Device Package14-SOIC
Package / Case14-SOIC (0.154", 3.90mm Width)
