DM7438M

In Stock: 8,115
DM7438M - Fairchild Semiconductor - Logic - Gates and Inverters
REF: DM7438M Fairchild Semiconductor
DM7438M

Fairchild Semiconductor

NAND GATE, TTL/H/L SERIES, TTL

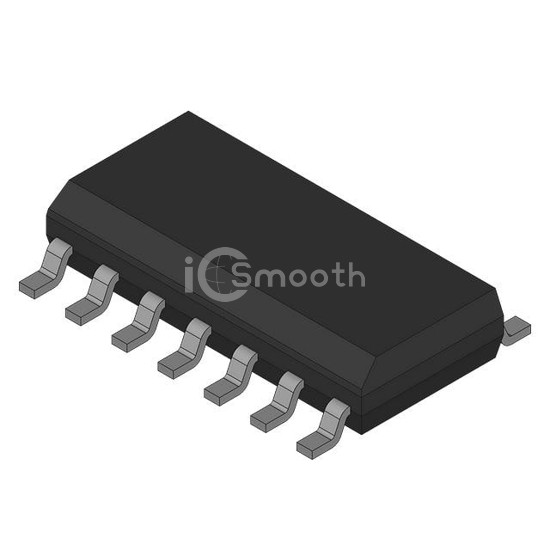

DM7438M is a Logic - Gates and Inverters manufactured by Fairchild Semiconductor. NAND GATE, TTL/H/L SERIES, TTL. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C, voltage - supply 4.75V ~ 5.25V, package / case 14-SOIC (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 8,115

Specifications

15 parameters
Product StatusActive
Logic TypeNAND Gate
Number of Circuits4
Number of Inputs2
FeaturesOpen Collector
Voltage - Supply4.75V ~ 5.25V
Current - Quiescent (Max)54 mA
Current - Output High, Low250µA, 48mA
Logic Level - Low0.8V
Logic Level - High2V
Max Propagation Delay @ V, Max CL22ns @ 5V, 45pF
Operating Temperature0°C ~ 70°C
Mounting TypeSurface Mount
Supplier Device Package14-SOIC
Package / Case14-SOIC (0.154", 3.90mm Width)
