DM7420N - Fairchild Semiconductor - Logic - Gates and Inverters
REF: DM7420N Fairchild Semiconductor
DM7420N

Fairchild Semiconductor

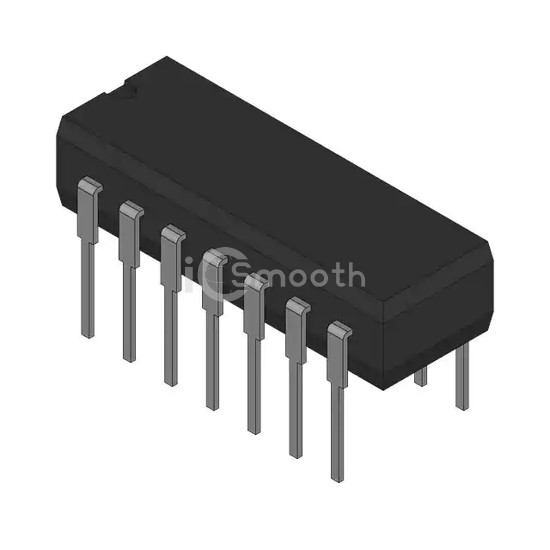

NAND GATE, 4-INPUT, TTL, PDIP14

DM7420N is a Logic - Gates and Inverters manufactured by Fairchild Semiconductor. NAND GATE, 4-INPUT, TTL, PDIP14. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 70°C, voltage - supply 4.75V ~ 5.25V, package / case 14-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 9,822

Specifications

15 parameters
Product StatusActive
Logic TypeNAND Gate
Number of Circuits2
Number of Inputs4
Features-
Voltage - Supply4.75V ~ 5.25V
Current - Quiescent (Max)11 mA
Current - Output High, Low400µA, 16mA
Logic Level - Low0.8V
Logic Level - High2V
Max Propagation Delay @ V, Max CL15ns @ 5V, 15pF
Operating Temperature0°C ~ 70°C
Mounting TypeThrough Hole
Supplier Device Package14-DIP
Package / Case14-DIP (0.300", 7.62mm)
