74LCX821MSA

In Stock: 2,147

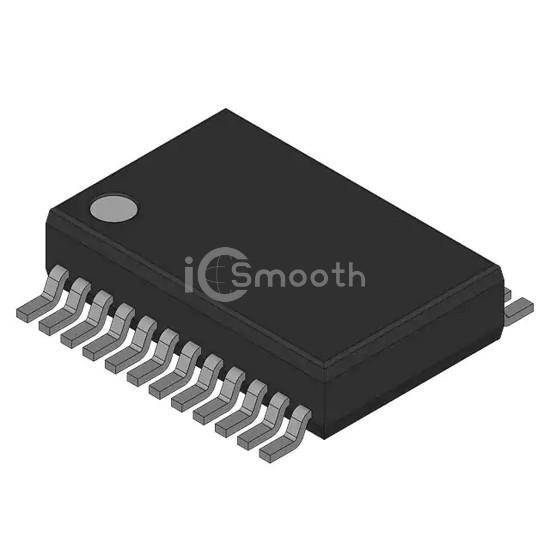

74LCX821MSA - Fairchild Semiconductor - Logic - Flip Flops
REF: 74LCX821MSA Fairchild Semiconductor
74LCX821MSA

Fairchild Semiconductor

IC FF D-TYPE SNGL 10BIT 24SSOP

74LCX821MSA is a Logic - Flip Flops manufactured by Fairchild Semiconductor. IC FF D-TYPE SNGL 10BIT 24SSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply 2V ~ 3.6V, package / case 24-SSOP (0.209", 5.30mm Width).

Datasheet Request a Quote

In Stock: 2,147

Specifications

17 parameters
Product StatusObsolete
FunctionStandard
TypeD-Type
Output TypeTri-State, Non-Inverted
Number of Elements1
Number of Bits per Element10
Clock Frequency150 MHz
Max Propagation Delay @ V, Max CL7ns @ 3.3V, 50pF
Trigger TypePositive Edge
Current - Output High, Low24mA, 24mA
Voltage - Supply2V ~ 3.6V
Current - Quiescent (Iq)10 µA
Input Capacitance7 pF
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Supplier Device Package24-SSOP
Package / Case24-SSOP (0.209", 5.30mm Width)
