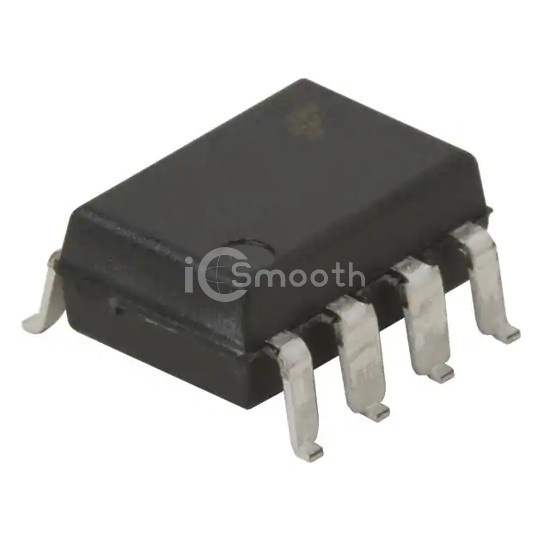

Name: 6N135S
Brand: Fairchild Semiconductor
SKU: 6N135S
Price: 0.83 USD
Availability: InStock

REF: 6N135S Fairchild Semiconductor

6N135S

LOGIC IC OUTPUT OPTOCOUPLER

6N135S is a Optoisolators - Transistor, Photovoltaic Output manufactured by Fairchild Semiconductor. LOGIC IC OUTPUT OPTOCOUPLER. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 100°C, voltage - forward (vf) (typ) 1.45V, package / case 8-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 6,170

Tiered Pricing USD

1+ $0.8300 —

10+ $0.5770 -30%

100+ $0.4224 -49%

500+ $0.3535 -57%

1,000+ $0.3310 -60%

2,000+ $0.3118 -62%

5,000+ $0.2908 -65%

10,000+ $0.2778 -67%

25,000+ $0.2636 -68% BEST

Specifications

18 parameters

Product Status	Obsolete
Number of Channels	1
Voltage - Isolation	2500Vrms
Current Transfer Ratio (Min)	7% @ 16mA
Current Transfer Ratio (Max)	50% @ 16mA
Turn On / Turn Off Time (Typ)	450ns, 500ns
Rise / Fall Time (Typ)	-
Input Type	DC
Output Type	Transistor with Base

Voltage - Output (Max)	20V
Current - Output / Channel	8mA
Voltage - Forward (Vf) (Typ)	1.45V
Current - DC Forward (If) (Max)	25 mA
Vce Saturation (Max)	-
Operating Temperature	-55°C ~ 100°C
Mounting Type	Surface Mount
Package / Case	8-SMD, Gull Wing
Supplier Device Package	8-SMD
