5437DM

In Stock: 1,590

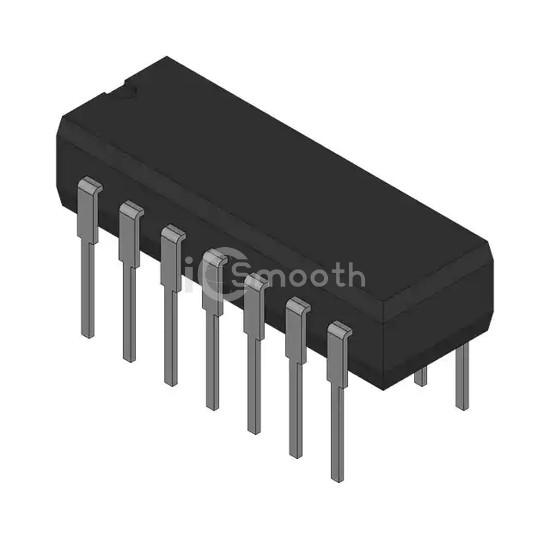

5437DM - Fairchild Semiconductor - Logic - Gates and Inverters
REF: 5437DM Fairchild Semiconductor
5437DM

Fairchild Semiconductor

NAND GATE, TTL/H/L SERIES

5437DM is a Logic - Gates and Inverters manufactured by Fairchild Semiconductor. NAND GATE, TTL/H/L SERIES. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, voltage - supply 4.5V ~ 5.5V, package / case 14-CDIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 1,590

Specifications

15 parameters
Product StatusActive
Logic TypeNAND Gate
Number of Circuits4
Number of Inputs2
Features-
Voltage - Supply4.5V ~ 5.5V
Current - Quiescent (Max)54 mA
Current - Output High, Low1.2mA, 48mA
Logic Level - Low0.8V
Logic Level - High2V
Max Propagation Delay @ V, Max CL22ns @ 5V, 45pF
Operating Temperature-55°C ~ 125°C
Mounting TypeThrough Hole
Supplier Device Package14-CERDIP
Package / Case14-CDIP (0.300", 7.62mm)
