RECTIFIER DIODE

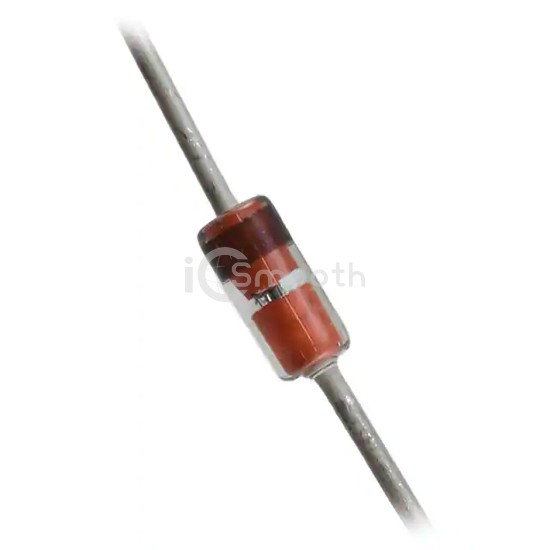

1N4305 is a Diodes - Rectifiers - Single manufactured by Fairchild Semiconductor. RECTIFIER DIODE. Key specifications: mounting type Through Hole, package / case DO-204AH, DO-35, Axial.
In Stock: 112,938
| Product Status | Obsolete |
|---|---|
| Diode Type | Standard |
| Voltage - DC Reverse (Vr) (Max) | 75 V |
| Current - Average Rectified (Io) | 300mA |
| Voltage - Forward (Vf) (Max) @ If | 850 mV @ 10 mA |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 4 ns |
| Current - Reverse Leakage @ Vr | 100 nA @ 50 V |
|---|---|
| Capacitance @ Vr, F | 2pF @ 0V, 1MHz |
| Mounting Type | Through Hole |
| Package / Case | DO-204AH, DO-35, Axial |
| Supplier Device Package | DO-35 (DO-204AH) |
| Operating Temperature - Junction | 175°C (Max) |
