Name: H11AA4S1(TA)-V
Brand: Everlight Electronics Co Ltd
SKU: H11AA4S1(TA)-V
Price: 1.01 USD
Availability: InStock

REF: H11AA4S1(TA)-V Everlight Electronics Co Ltd

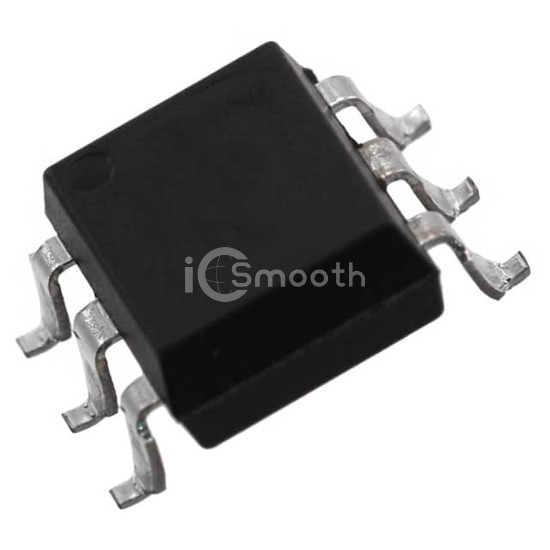

H11AA4S1(TA)-V

Everlight Electronics Co Ltd

OPTOISO 5KV TRANS W/BASE 6SMD

H11AA4S1(TA)-V is a Optoisolators - Transistor, Photovoltaic Output manufactured by Everlight Electronics Co Ltd. OPTOISO 5KV TRANS W/BASE 6SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 100°C, voltage - forward (vf) (typ) 1.2V, package / case 6-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 1,761

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	100% @ 10mA
Current Transfer Ratio (Max)	-
Turn On / Turn Off Time (Typ)	10µs, 10µs (Max)
Rise / Fall Time (Typ)	10µs, 10µs (Max)
Input Type	AC, DC
Output Type	Transistor with Base

Voltage - Output (Max)	80V
Current - Output / Channel	-
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	60 mA
Vce Saturation (Max)	400mV
Operating Temperature	-55°C ~ 100°C
Mounting Type	Surface Mount
Package / Case	6-SMD, Gull Wing
Supplier Device Package	6-SMD
