Name: EL817(S)(D)(TU)
Brand: Everlight Electronics Co Ltd
SKU: EL817(S)(D)(TU)
Price: 0.14 USD
Availability: InStock

REF: EL817(S)(D)(TU) Everlight Electronics Co Ltd

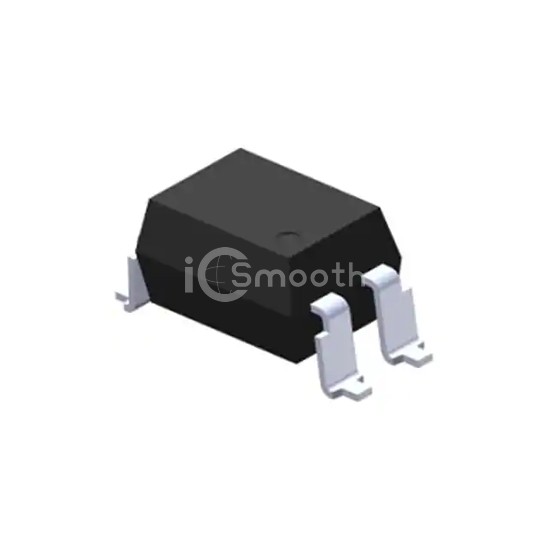

EL817(S)(D)(TU)

Everlight Electronics Co Ltd

OPTOISOLTR 5KV TRANSISTOR 4-SMD

EL817(S)(D)(TU) is a Optoisolators - Transistor, Photovoltaic Output manufactured by Everlight Electronics Co Ltd. OPTOISOLTR 5KV TRANSISTOR 4-SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 110°C, voltage - forward (vf) (typ) 1.2V, package / case 4-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 2,422

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	300% @ 5mA
Current Transfer Ratio (Max)	600% @ 5mA
Turn On / Turn Off Time (Typ)	-
Rise / Fall Time (Typ)	4µs, 3µs
Input Type	DC
Output Type	Transistor

Voltage - Output (Max)	35V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	60 mA
Vce Saturation (Max)	200mV
Operating Temperature	-55°C ~ 110°C
Mounting Type	Surface Mount
Package / Case	4-SMD, Gull Wing
Supplier Device Package	4-SMD
