EL815(M)

In Stock: 3,284
EL815(M) - Everlight Electronics Co Ltd - Optoisolators - Transistor, Photovoltaic Output
REF: EL815(M) Everlight Electronics Co Ltd
EL815(M)

Everlight Electronics Co Ltd

OPTOISOLTR 5KV DARLINGTON 4-DIP

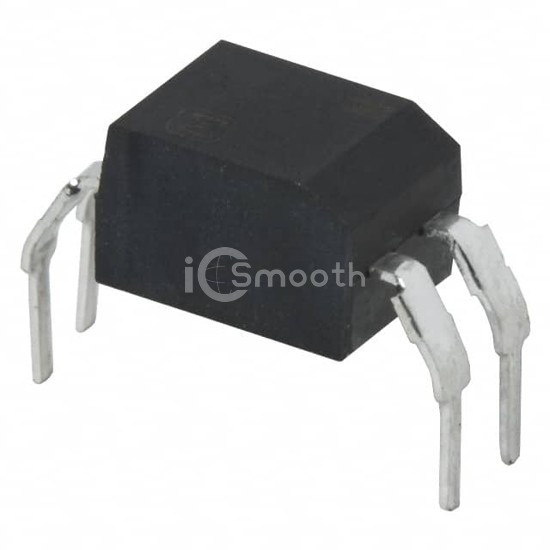

EL815(M) is a Optoisolators - Transistor, Photovoltaic Output manufactured by Everlight Electronics Co Ltd. OPTOISOLTR 5KV DARLINGTON 4-DIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 110°C, voltage - forward (vf) (typ) 1.2V, package / case 4-DIP (0.400", 10.16mm).

Datasheet Request a Quote

In Stock: 3,284

Specifications

18 parameters
Product StatusActive
Number of Channels1
Voltage - Isolation5000Vrms
Current Transfer Ratio (Min)600% @ 1mA
Current Transfer Ratio (Max)7500% @ 1mA
Turn On / Turn Off Time (Typ)-
Rise / Fall Time (Typ)60µs, 53µs
Input TypeDC
Output TypeDarlington
Voltage - Output (Max)35V
Current - Output / Channel80mA
Voltage - Forward (Vf) (Typ)1.2V
Current - DC Forward (If) (Max)60 mA
Vce Saturation (Max)1V
Operating Temperature-55°C ~ 110°C
Mounting TypeThrough Hole
Package / Case4-DIP (0.400", 10.16mm)
Supplier Device Package4-DIP
