EL3012S(TB)

In Stock: 2,037

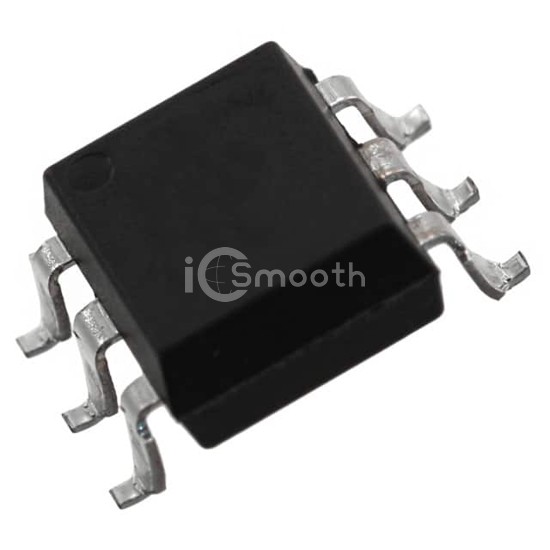

EL3012S(TB) - Everlight Electronics Co Ltd - Optoisolators - Triac, SCR Output
REF: EL3012S(TB) Everlight Electronics Co Ltd
EL3012S(TB)

Everlight Electronics Co Ltd

OPTOISOLATOR 5KV TRIAC 6SMD

EL3012S(TB) is a Optoisolators - Triac, SCR Output manufactured by Everlight Electronics Co Ltd. OPTOISOLATOR 5KV TRIAC 6SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 100°C, voltage - forward (vf) (typ) 1.18V, package / case 6-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 2,037

Specifications

18 parameters
Product StatusActive
Output TypeTriac
Zero Crossing CircuitNo
Number of Channels1
Voltage - Isolation5000Vrms
Voltage - Off State250 V
Static dV/dt (Min)100V/µs (Typ)
Current - LED Trigger (Ift) (Max)5mA
Current - On State (It (RMS)) (Max)100 mA
Current - Hold (Ih)250µA (Typ)
Turn On Time-
Voltage - Forward (Vf) (Typ)1.18V
Current - DC Forward (If) (Max)60 mA
Operating Temperature-55°C ~ 100°C
Mounting TypeSurface Mount
Package / Case6-SMD, Gull Wing
Supplier Device Package6-SMD
Approval AgencyCSA, DEMKO, FIMKO, NEMKO, SEMKO, UL
