Name: ESP8685H4
Brand: Espressif Systems
SKU: ESP8685H4
Price: 2.76 USD
Availability: InStock

REF: ESP8685H4 Espressif Systems

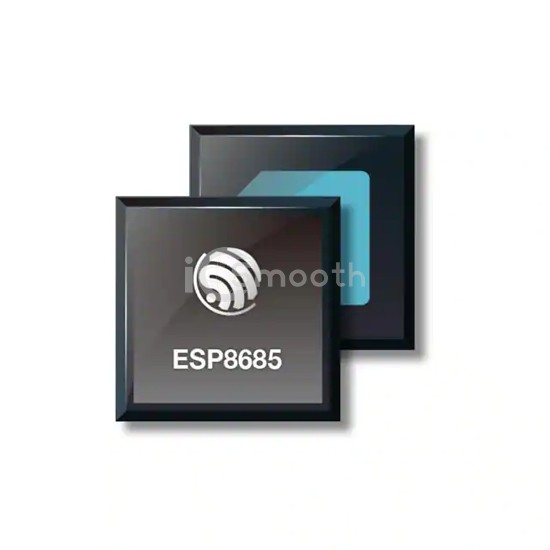

ESP8685H4

SMD IC ESP8685H4, SINGLE-CORE MC

ESP8685H4 is a RF Transceiver ICs manufactured by Espressif Systems. SMD IC ESP8685H4, SINGLE-CORE MC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C (TA), voltage - supply 3V ~ 3.6V, package / case 28-VFQFN Exposed Pad.

Request a Quote

In Stock: 9,075

Tiered Pricing USD

1+ $2.7600 —

10+ $2.3780 -14%

25+ $2.2460 -19%

100+ $2.0652 -25%

250+ $1.9566 -29%

500+ $1.8799 -32%

1,000+ $1.8076 -35% BEST

Specifications

19 parameters

Product Status	Active
Type	TxRx + MCU
RF Family/Standard	Bluetooth, WiFi
Protocol	802.11b/g/n, Bluetooth v5.0
Modulation	-
Frequency	2.4GHz
Data Rate (Max)	150Mbps
Power - Output	21dBm
Sensitivity	-98.4dBm
Memory Size	-

Serial Interfaces	ADC, GPIO, I²C, I²S, PWM, SPI, UART, USB
GPIO	15
Voltage - Supply	3V ~ 3.6V
Current - Receiving	84mA ~ 87mA
Current - Transmitting	276mA ~ 335mA
Operating Temperature	-40°C ~ 105°C (TA)
Mounting Type	Surface Mount
Package / Case	28-VFQFN Exposed Pad
Supplier Device Package	28-QFN (4x4)
