Name: ESP8685H2
Brand: Espressif Systems
SKU: ESP8685H2
Price: 2.17 USD
Availability: InStock

REF: ESP8685H2 Espressif Systems

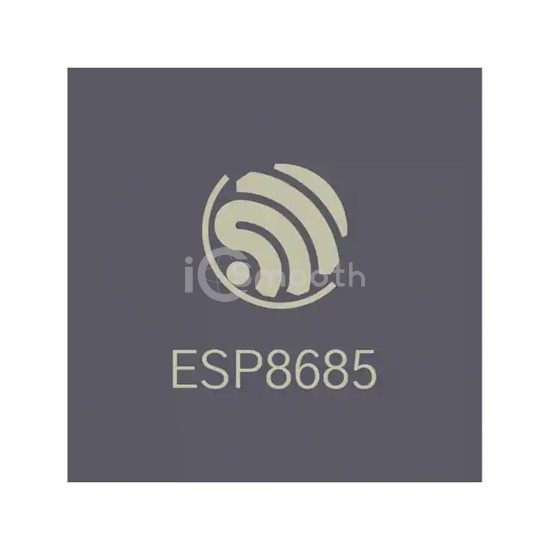

ESP8685H2

SMD IC ESP8685H2, SINGLE-CORE MC

ESP8685H2 is a RF Transceiver ICs manufactured by Espressif Systems. SMD IC ESP8685H2, SINGLE-CORE MC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C (TA), voltage - supply 3V ~ 3.6V, package / case 28-VFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 4,830

Tiered Pricing USD

1+ $2.1700 —

10+ $1.8690 -14%

25+ $1.7652 -19%

100+ $1.6216 -25%

250+ $1.5356 -29%

500+ $1.4747 -32%

1,000+ $1.4173 -35% BEST

Specifications

19 parameters

Product Status	Active
Type	TxRx + MCU
RF Family/Standard	WiFi
Protocol	802.11b/g/n
Modulation	-
Frequency	2.4GHz
Data Rate (Max)	150Mbps
Power - Output	19dBm
Sensitivity	-97dBm
Memory Size	-

Serial Interfaces	ADC, GPIO, I²C, I²S, PWM, SPI, UART, USB
GPIO	15
Voltage - Supply	3V ~ 3.6V
Current - Receiving	84mA ~ 87mA
Current - Transmitting	276mA ~ 335mA
Operating Temperature	-40°C ~ 105°C (TA)
Mounting Type	Surface Mount
Package / Case	28-VFQFN Exposed Pad
Supplier Device Package	28-QFN (4x4)
