ESP8285H16

In Stock: 42,113

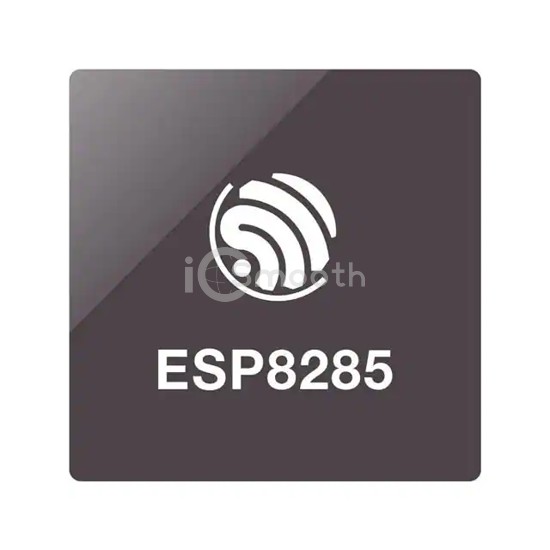

ESP8285H16 - Espressif Systems - RF Transceiver ICs
REF: ESP8285H16 Espressif Systems
ESP8285H16

Espressif Systems

IC RF TXRX+MCU WIFI 32VFQFN

ESP8285H16 is a RF Transceiver ICs manufactured by Espressif Systems. IC RF TXRX+MCU WIFI 32VFQFN. Key specifications: mounting type Surface Mount, voltage - supply 2.7V ~ 3.6V, package / case 32-VFQFN Exposed Pad, power - output 20dBm.

Datasheet Request a Quote

In Stock: 42,113

Specifications

19 parameters
Product StatusActive
TypeTxRx + MCU
RF Family/StandardWiFi
Protocol802.11b/g/n
Modulation-
Frequency2.4GHz
Data Rate (Max)54Mbps
Power - Output20dBm
Sensitivity-91dBm
Memory Size-
Serial InterfacesI²C, I²S, SPI, UART
GPIO8
Voltage - Supply2.7V ~ 3.6V
Current - Receiving50mA ~ 56mA
Current - Transmitting120mA ~ 170mA
Operating Temperature-
Mounting TypeSurface Mount
Package / Case32-VFQFN Exposed Pad
Supplier Device Package32-QFN (5x5)
