Name: UP1966E
Brand: EPC
SKU: UP1966E
Price: 2.28 USD
Availability: InStock

REF: UP1966E EPC

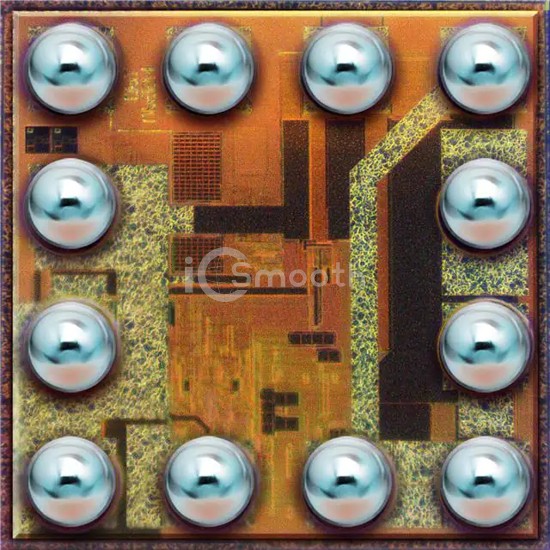

UP1966E

IC GATE DRVR HALF-BRIDGE 12WLCSP

UP1966E is a PMIC - Gate Drivers manufactured by EPC. IC GATE DRVR HALF-BRIDGE 12WLCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 4.5V ~ 5.5V, package / case 12-UFBGA, WLCSP.

Datasheet Request a Quote

In Stock: 140,262

Tiered Pricing USD

1+ $2.2800 —

10+ $1.6870 -26%

25+ $1.5396 -32%

100+ $1.3776 -40%

250+ $1.3003 -43%

500+ $1.2537 -45%

1,000+ $1.2400 -46% BEST

Specifications

15 parameters

Product Status	Active
Driven Configuration	Half-Bridge
Channel Type	Independent
Number of Drivers	2
Gate Type	Enhanced Mode GaN FET
Voltage - Supply	4.5V ~ 5.5V
Logic Voltage - VIL, VIH	0.5V, 2.3V
Current - Peak Output (Source, Sink)	7.1A, 12.5A

Input Type	Non-Inverting
High Side Voltage - Max (Bootstrap)	85 V
Rise / Fall Time (Typ)	8ns, 4ns
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	12-UFBGA, WLCSP
Supplier Device Package	12-WLCSP-B (1.6x1.6)
