Name: EL8202IY
Brand: Elantec
SKU: EL8202IY
Price: 1.74 USD
Availability: InStock

REF: EL8202IY Elantec

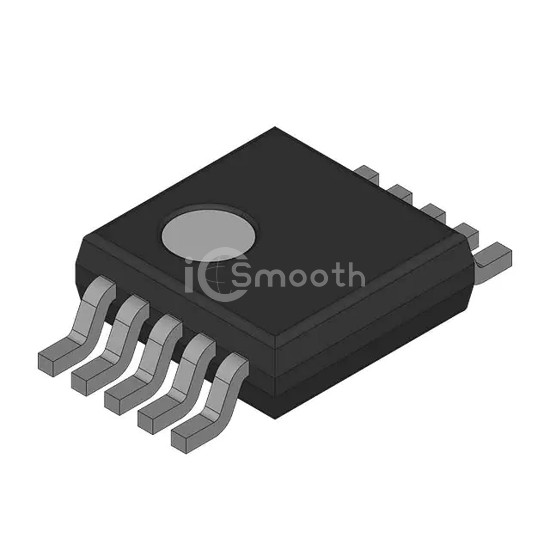

EL8202IY

IC OPAMP GP 2 CIRCUIT 10MSOP

EL8202IY is a Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps manufactured by Elantec. IC OPAMP GP 2 CIRCUIT 10MSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 10-TFSOP, 10-MSOP (0.118", 3.00mm Width), current - supply 5.6mA (x2 Channels).

Datasheet Request a Quote

In Stock: 21,603

Specifications

17 parameters

Product Status	Obsolete
Amplifier Type	General Purpose
Number of Circuits	2
Output Type	Rail-to-Rail
Slew Rate	600V/µs
Gain Bandwidth Product	200 MHz
-3db Bandwidth	500 MHz
Current - Input Bias	6 µA
Voltage - Input Offset	800 µV

Current - Supply	5.6mA (x2 Channels)
Current - Output / Channel	65 mA
Voltage - Supply Span (Min)	3 V
Voltage - Supply Span (Max)	5 V
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Supplier Device Package	10-MSOP
