Name: EL7566DRE
Brand: Elantec
SKU: EL7566DRE
Price: 2.97 USD
Availability: InStock

REF: EL7566DRE Elantec

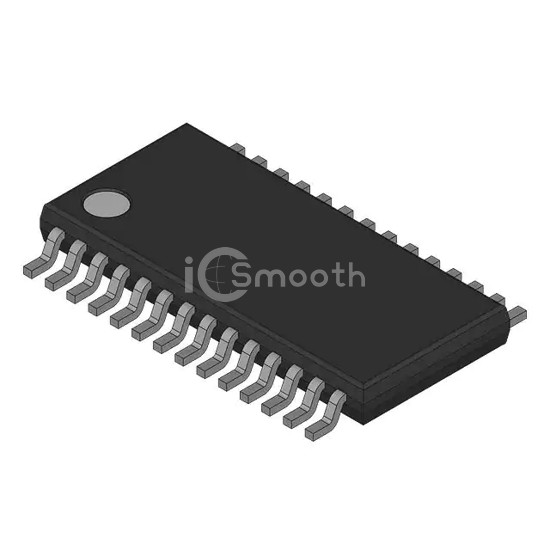

EL7566DRE

SWITCHING REGULATOR

EL7566DRE is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Elantec. SWITCHING REGULATOR. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 85°C (TA), package / case 28-TSSOP (0.173", 4.40mm Width) Exposed Pad, current - output 6A.

Datasheet Request a Quote

In Stock: 1,449

Specifications

17 parameters

Product Status	Obsolete
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Output Type	Adjustable
Number of Outputs	1
Voltage - Input (Min)	3V
Voltage - Input (Max)	6V
Voltage - Output (Min/Fixed)	0.8V

Voltage - Output (Max)	6V
Current - Output	6A
Frequency - Switching	300kHz ~ 440kHz
Synchronous Rectifier	Yes
Operating Temperature	0°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	28-TSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package	28-HTSSOP
