Name: EL5262IY
Brand: Elantec
SKU: EL5262IY
Price: 0.95 USD
Availability: InStock

REF: EL5262IY Elantec

EL5262IY

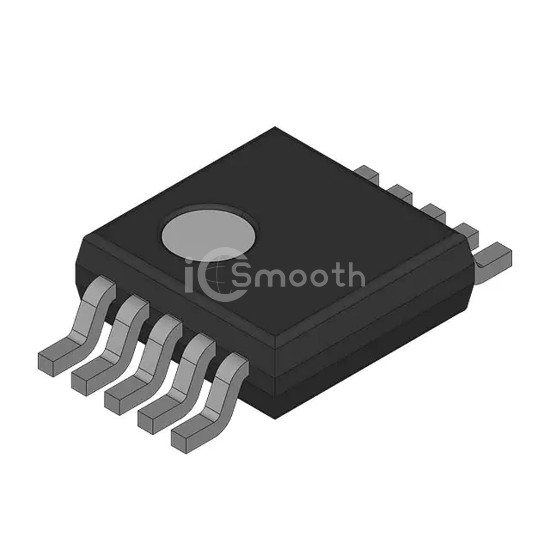

IC OPAMP CFA 2 CIRCUIT 10MSOP

EL5262IY is a Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps manufactured by Elantec. IC OPAMP CFA 2 CIRCUIT 10MSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 10-TFSOP, 10-MSOP (0.118", 3.00mm Width), current - supply 1.5mA (x2 Channels).

Datasheet Request a Quote

In Stock: 7,490

Specifications

17 parameters

Product Status	Obsolete
Amplifier Type	Current Feedback
Number of Circuits	2
Output Type	-
Slew Rate	4000V/µs
Gain Bandwidth Product	-
-3db Bandwidth	500 MHz
Current - Input Bias	2 µA
Voltage - Input Offset	1.5 mV

Current - Supply	1.5mA (x2 Channels)
Current - Output / Channel	100 mA
Voltage - Supply Span (Min)	5 V
Voltage - Supply Span (Max)	12 V
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Supplier Device Package	10-MSOP
