EL5224ILZ

In Stock: 556
EL5224ILZ - Elantec - Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
REF: EL5224ILZ Elantec
EL5224ILZ

Elantec

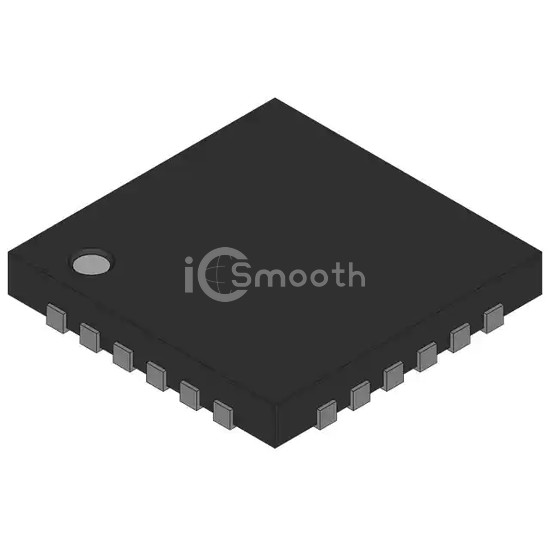

IC BUFFER 8 CIRCUIT 24QFN

EL5224ILZ is a Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps manufactured by Elantec. IC BUFFER 8 CIRCUIT 24QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 24-VFQFN Exposed Pad, current - supply 6.8mA (x8 Channels).

Datasheet Request a Quote

In Stock: 556

Specifications

17 parameters
Product StatusObsolete
Amplifier TypeBuffer
Number of Circuits8
Output TypeRail-to-Rail
Slew Rate15V/µs
Gain Bandwidth Product8 MHz
-3db Bandwidth12 MHz
Current - Input Bias2 nA
Voltage - Input Offset2 mV
Current - Supply6.8mA (x8 Channels)
Current - Output / Channel140 mA
Voltage - Supply Span (Min)4.5 V
Voltage - Supply Span (Max)16.5 V
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Package / Case24-VFQFN Exposed Pad
Supplier Device Package24-QFN (4x5)
