Name: EL5176IY
Brand: Elantec
SKU: EL5176IY
Price: 0.80 USD
Availability: InStock

REF: EL5176IY Elantec

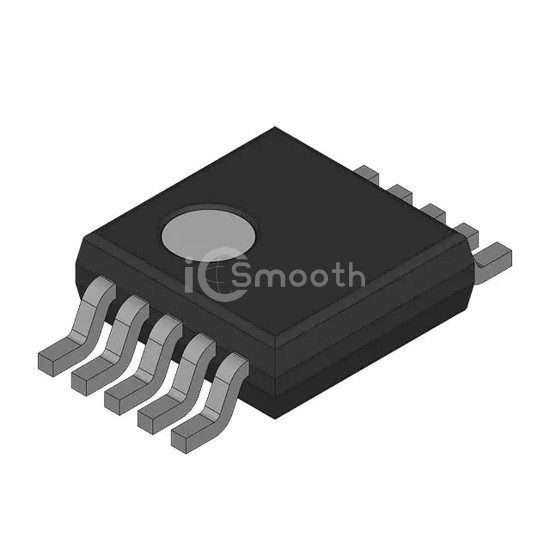

EL5176IY

IC OPAMP DIFF 1 CIRCUIT 10MSOP

EL5176IY is a Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps manufactured by Elantec. IC OPAMP DIFF 1 CIRCUIT 10MSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 10-TFSOP, 10-MSOP (0.118", 3.00mm Width), current - supply 7.5mA.

Datasheet Request a Quote

In Stock: 22,106

Specifications

17 parameters

Product Status	Obsolete
Amplifier Type	Differential
Number of Circuits	1
Output Type	Differential
Slew Rate	800V/µs
Gain Bandwidth Product	100 MHz
-3db Bandwidth	250 MHz
Current - Input Bias	6 µA
Voltage - Input Offset	1.5 mV

Current - Supply	7.5mA
Current - Output / Channel	50 mA
Voltage - Supply Span (Min)	4.75 V
Voltage - Supply Span (Max)	11 V
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Supplier Device Package	10-MSOP
