Name: STSP84033U800
Brand: Eaton - Electronics Division
SKU: STSP84033U800
Price: 0.35 USD
Availability: InStock

REF: STSP84033U800 Eaton - Electronics Division

STSP84033U800

Eaton - Electronics Division

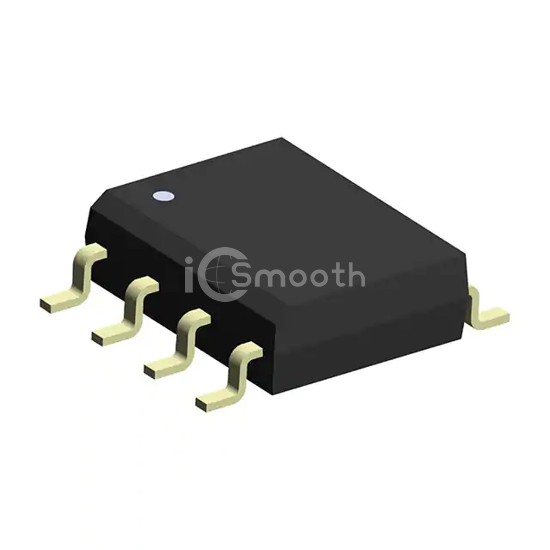

TVS DIODE 3.3VWM 15VC 8-SOP

STSP84033U800 is a TVS - Diodes manufactured by Eaton - Electronics Division. TVS DIODE 3.3VWM 15VC 8-SOP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TJ), package / case 8-SOIC (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 3,730

Specifications

16 parameters

Product Status	Active
Type	Steering (Rail to Rail)
Unidirectional Channels	4
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	3.3V (Max)
Voltage - Breakdown (Min)	-
Voltage - Clamping (Max) @ Ipp	15V
Current - Peak Pulse (10/1000µs)	25A (8/20µs)

Power - Peak Pulse	500W
Power Line Protection	Yes
Applications	Ethernet
Capacitance @ Frequency	8pF @ 1MHz
Operating Temperature	-55°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package	8-SOP
