Name: STS521360U201
Brand: Eaton - Electronics Division
SKU: STS521360U201
Price: 0.28 USD
Availability: InStock

REF: STS521360U201 Eaton - Electronics Division

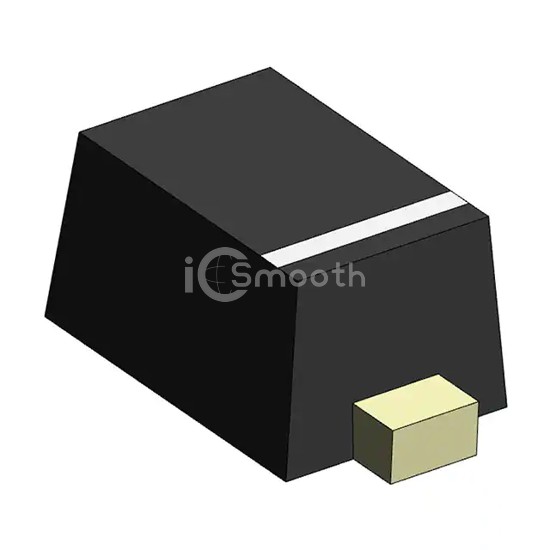

STS521360U201

Eaton - Electronics Division

TVS DIODE 36VWM 55VC SOD523

STS521360U201 is a TVS - Diodes manufactured by Eaton - Electronics Division. TVS DIODE 36VWM 55VC SOD523. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TJ), package / case SC-79, SOD-523.

Datasheet Request a Quote

In Stock: 9,946

Tiered Pricing USD

1+ $0.2800 —

10+ $0.1860 -34%

100+ $0.0840 -70%

500+ $0.0820 -71%

1,000+ $0.0790 -72% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	1
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	36V (Max)
Voltage - Breakdown (Min)	40V
Voltage - Clamping (Max) @ Ipp	55V
Current - Peak Pulse (10/1000µs)	1A (8/20µs)

Power - Peak Pulse	120W
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	20pF @ 1MHz (Max)
Operating Temperature	-55°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	SC-79, SOD-523
Supplier Device Package	SOD-523
