Name: STS521070U701
Brand: Eaton - Electronics Division
SKU: STS521070U701
Price: 0.26 USD
Availability: InStock

REF: STS521070U701 Eaton - Electronics Division

STS521070U701

Eaton - Electronics Division

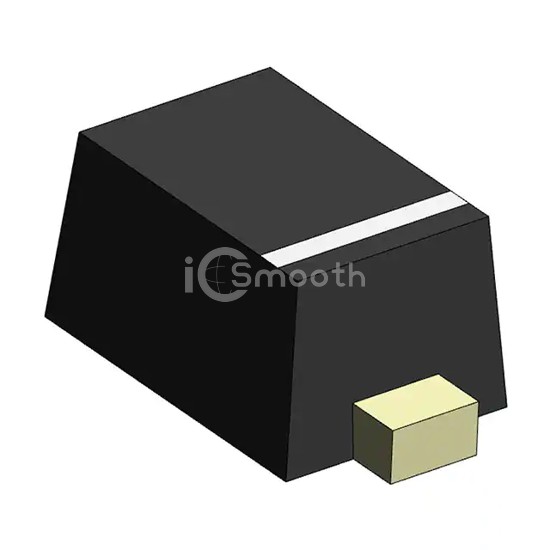

TVS DIODE 7VWM 16VC SOD523

STS521070U701 is a TVS - Diodes manufactured by Eaton - Electronics Division. TVS DIODE 7VWM 16VC SOD523. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TJ), package / case SC-79, SOD-523.

Datasheet Request a Quote

In Stock: 29,792

Tiered Pricing USD

1+ $0.2600 —

10+ $0.1730 -33%

100+ $0.0900 -65%

500+ $0.0820 -68%

1,000+ $0.0730 -72% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	1
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	7V (Max)
Voltage - Breakdown (Min)	7.5V
Voltage - Clamping (Max) @ Ipp	16V
Current - Peak Pulse (10/1000µs)	9A (8/20µs)

Power - Peak Pulse	120W
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	70pF @ 1MHz
Operating Temperature	-55°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	SC-79, SOD-523
Supplier Device Package	SOD-523
