Name: STS234050UL65
Brand: Eaton - Electronics Division
SKU: STS234050UL65
Price: 0.44 USD
Availability: InStock

REF: STS234050UL65 Eaton - Electronics Division

STS234050UL65

Eaton - Electronics Division

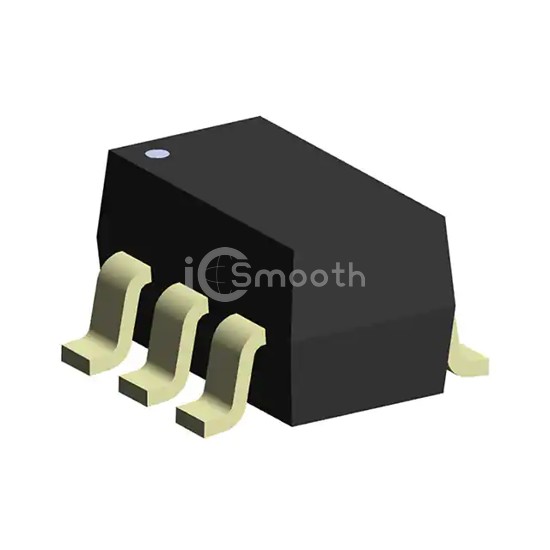

TVS DIODE 5VWM 13VC SOT23-6

STS234050UL65 is a TVS - Diodes manufactured by Eaton - Electronics Division. TVS DIODE 5VWM 13VC SOT23-6. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TJ), package / case SOT-23-6.

Datasheet Request a Quote

In Stock: 13,885

Tiered Pricing USD

1+ $0.4400 —

10+ $0.2930 -33%

100+ $0.1720 -61%

500+ $0.1520 -65%

1,000+ $0.1280 -71% BEST

Specifications

16 parameters

Product Status	Active
Type	Steering (Rail to Rail)
Unidirectional Channels	4
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	5V (Max)
Voltage - Breakdown (Min)	6V
Voltage - Clamping (Max) @ Ipp	13V
Current - Peak Pulse (10/1000µs)	8A (8/20µs)

Power - Peak Pulse	100W
Power Line Protection	Yes
Applications	DVI, Ethernet, USB
Capacitance @ Frequency	1.2pF @ 1MHz
Operating Temperature	-55°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	SOT-23-6
Supplier Device Package	SOT23-6
