Name: STS232240U301
Brand: Eaton - Electronics Division
SKU: STS232240U301
Price: 0.30 USD
Availability: InStock

REF: STS232240U301 Eaton - Electronics Division

STS232240U301

Eaton - Electronics Division

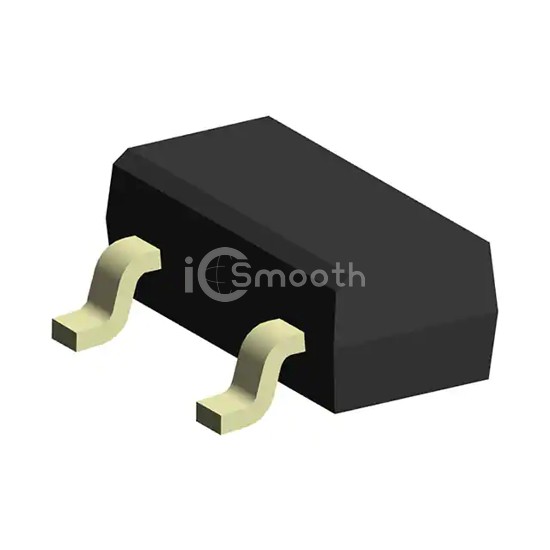

TVS DIODE 24VWM 55VC SOT23

STS232240U301 is a TVS - Diodes manufactured by Eaton - Electronics Division. TVS DIODE 24VWM 55VC SOT23. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TJ), package / case TO-236-3, SC-59, SOT-23-3.

Datasheet Request a Quote

In Stock: 1,086

Tiered Pricing USD

1+ $0.3000 —

10+ $0.2010 -33%

100+ $0.1030 -66%

500+ $0.1000 -67%

1,000+ $0.0940 -69% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	2
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	24V (Max)
Voltage - Breakdown (Min)	26.7V
Voltage - Clamping (Max) @ Ipp	55V
Current - Peak Pulse (10/1000µs)	5A (8/20µs)

Power - Peak Pulse	350W
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	30pF @ 1MHz
Operating Temperature	-55°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-236-3, SC-59, SOT-23-3
Supplier Device Package	SOT-23
