Name: STS232120U901
Brand: Eaton - Electronics Division
SKU: STS232120U901
Price: 0.07 USD
Availability: InStock

REF: STS232120U901 Eaton - Electronics Division

STS232120U901

Eaton - Electronics Division

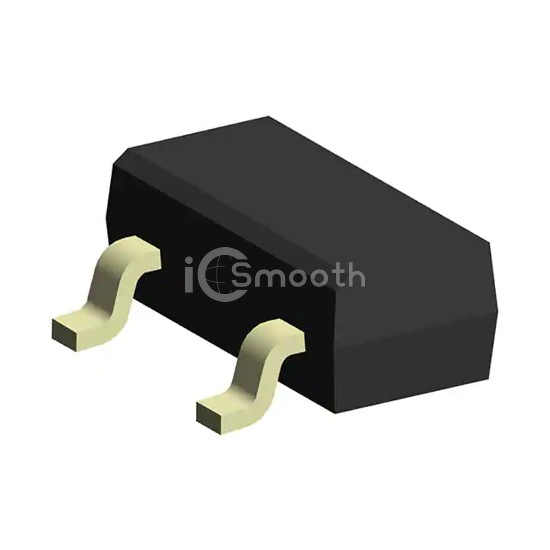

TVS DIODE 12VWM 26VC SOT23

STS232120U901 is a TVS - Diodes manufactured by Eaton - Electronics Division. TVS DIODE 12VWM 26VC SOT23. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TJ), package / case TO-236-3, SC-59, SOT-23-3.

Datasheet Request a Quote

In Stock: 4,064

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	2
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	12V (Max)
Voltage - Breakdown (Min)	13V
Voltage - Clamping (Max) @ Ipp	26V
Current - Peak Pulse (10/1000µs)	20A (8/20µs)

Power - Peak Pulse	500W
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	90pF @ 1MHz
Operating Temperature	-55°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-236-3, SC-59, SOT-23-3
Supplier Device Package	SOT-23
