Name: STS232120U581
Brand: Eaton - Electronics Division
SKU: STS232120U581
Price: 0.23 USD
Availability: InStock

REF: STS232120U581 Eaton - Electronics Division

STS232120U581

Eaton - Electronics Division

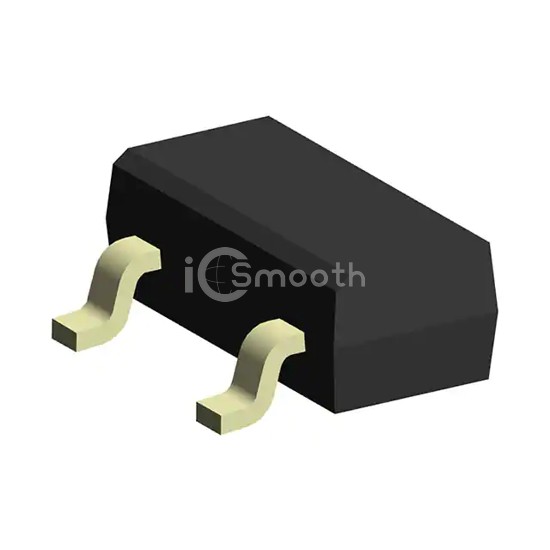

TVS DIODE 12VWM 25VC SOT23

STS232120U581 is a TVS - Diodes manufactured by Eaton - Electronics Division. TVS DIODE 12VWM 25VC SOT23. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TJ), package / case TO-236-3, SC-59, SOT-23-3.

Datasheet Request a Quote

In Stock: 2,345

Tiered Pricing USD

1+ $0.2300 —

10+ $0.1560 -32%

100+ $0.0880 -62%

500+ $0.0804 -65%

1,000+ $0.0764 -67% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	2
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	12V (Max)
Voltage - Breakdown (Min)	13.3V
Voltage - Clamping (Max) @ Ipp	25V
Current - Peak Pulse (10/1000µs)	12A (8/20µs)

Power - Peak Pulse	350W
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	58pF @ 1MHz
Operating Temperature	-55°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-236-3, SC-59, SOT-23-3
Supplier Device Package	SOT-23
