Name: STS232033U202
Brand: Eaton - Electronics Division
SKU: STS232033U202
Price: 0.38 USD
Availability: InStock

REF: STS232033U202 Eaton - Electronics Division

STS232033U202

Eaton - Electronics Division

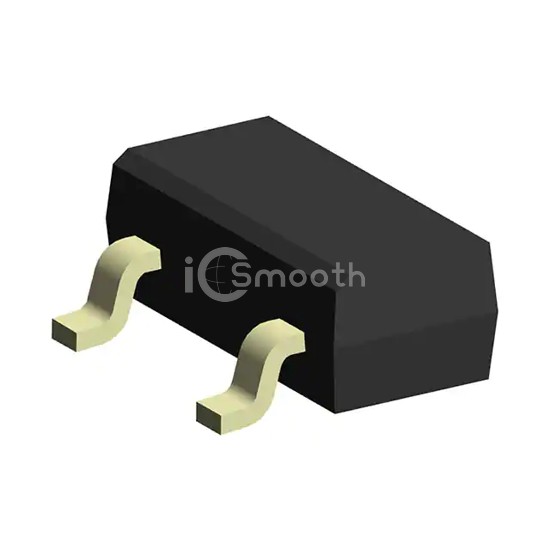

TVS DIODE 3.3VWM 14VC SOT23

STS232033U202 is a TVS - Diodes manufactured by Eaton - Electronics Division. TVS DIODE 3.3VWM 14VC SOT23. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TJ), package / case TO-236-3, SC-59, SOT-23-3.

Datasheet Request a Quote

In Stock: 802

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	2
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	3.3V (Max)
Voltage - Breakdown (Min)	4V
Voltage - Clamping (Max) @ Ipp	14V
Current - Peak Pulse (10/1000µs)	25A (8/20µs)

Power - Peak Pulse	350W
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	200pF @ 1MHz
Operating Temperature	-55°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-236-3, SC-59, SOT-23-3
Supplier Device Package	SOT-23
