Name: STS142700UL55
Brand: Eaton - Electronics Division
SKU: STS142700UL55
Price: 0.52 USD
Availability: InStock

REF: STS142700UL55 Eaton - Electronics Division

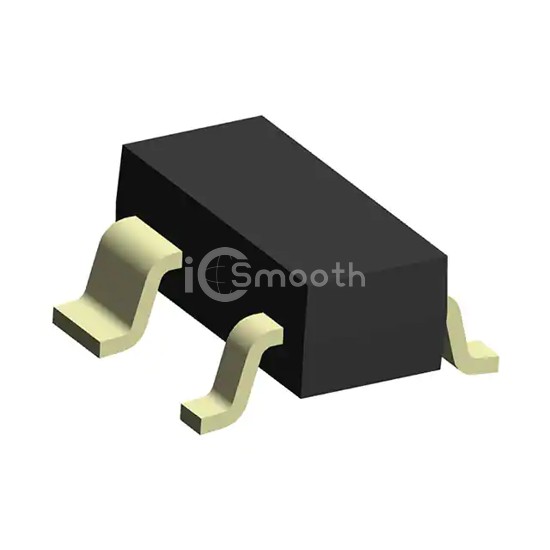

STS142700UL55

Eaton - Electronics Division

TVS DIODE 70VWM 9VC SOT143

STS142700UL55 is a TVS - Diodes manufactured by Eaton - Electronics Division. TVS DIODE 70VWM 9VC SOT143. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TJ), package / case TO-253-4, TO-253AA.

Datasheet Request a Quote

In Stock: 3,468

Tiered Pricing USD

1+ $0.5200 —

10+ $0.4290 -18%

100+ $0.2920 -44%

500+ $0.2300 -56%

1,000+ $0.1970 -62% BEST

Specifications

16 parameters

Product Status	Active
Type	Steering (Rail to Rail)
Unidirectional Channels	1
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	70V (Max)
Voltage - Breakdown (Min)	85V
Voltage - Clamping (Max) @ Ipp	9V
Current - Peak Pulse (10/1000µs)	24A (8/20µs)

Power - Peak Pulse	150W
Power Line Protection	Yes
Applications	General Purpose
Capacitance @ Frequency	0.55pF @ 1MHz
Operating Temperature	-55°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-253-4, TO-253AA
Supplier Device Package	SOT-143
