Name: STS142050UL08
Brand: Eaton - Electronics Division
SKU: STS142050UL08
Price: 0.39 USD
Availability: InStock

REF: STS142050UL08 Eaton - Electronics Division

STS142050UL08

Eaton - Electronics Division

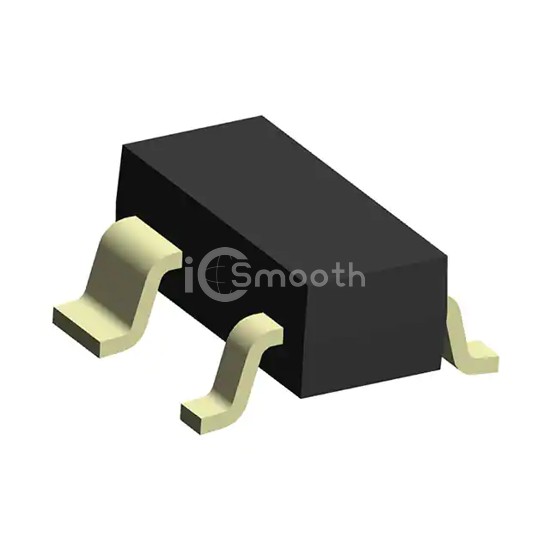

TVS DIODE 5VWM 20VC SOT143

STS142050UL08 is a TVS - Diodes manufactured by Eaton - Electronics Division. TVS DIODE 5VWM 20VC SOT143. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TJ), package / case TO-253-4, TO-253AA.

Datasheet Request a Quote

In Stock: 858

Tiered Pricing USD

1+ $0.3900 —

10+ $0.2610 -33%

100+ $0.1770 -55%

500+ $0.1370 -65%

1,000+ $0.1210 -69% BEST

Specifications

16 parameters

Product Status	Active
Type	Steering (Rail to Rail)
Unidirectional Channels	1
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	5V (Max)
Voltage - Breakdown (Min)	6V
Voltage - Clamping (Max) @ Ipp	20V
Current - Peak Pulse (10/1000µs)	17A (8/20µs)

Power - Peak Pulse	60W
Power Line Protection	Yes
Applications	General Purpose
Capacitance @ Frequency	0.8pF @ 1MHz
Operating Temperature	-55°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-253-4, TO-253AA
Supplier Device Package	SOT-143
