Name: STN101120B111
Brand: Eaton - Electronics Division
SKU: STN101120B111
Price: 0.25 USD
Availability: InStock

REF: STN101120B111 Eaton - Electronics Division

STN101120B111

Eaton - Electronics Division

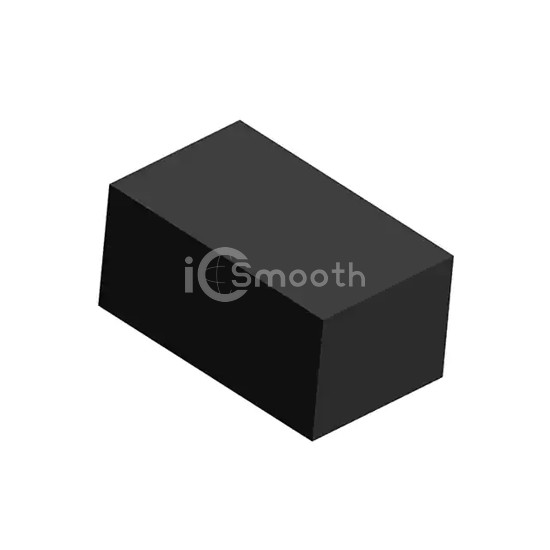

TVS DIODE 12VWM 26VC DFN1006-2L

STN101120B111 is a TVS - Diodes manufactured by Eaton - Electronics Division. TVS DIODE 12VWM 26VC DFN1006-2L. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TJ), package / case 0402 (1006 Metric).

Datasheet Request a Quote

In Stock: 41,004

Tiered Pricing USD

1+ $0.2500 —

10+ $0.1680 -33%

100+ $0.0790 -68%

500+ $0.0730 -71%

1,000+ $0.0630 -75%

2,000+ $0.0625 -75%

5,000+ $0.0620 -75% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	-
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	12V (Max)
Voltage - Breakdown (Min)	13.3V
Voltage - Clamping (Max) @ Ipp	26V
Current - Peak Pulse (10/1000µs)	4A (8/20µs)

Power - Peak Pulse	150W
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	11pF @ 1MHz
Operating Temperature	-55°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	0402 (1006 Metric)
Supplier Device Package	DFN1006-2L
