Name: SM8T22AH
Brand: Eaton - Electronics Division
SKU: SM8T22AH
Price: 4.50 USD
Availability: InStock

REF: SM8T22AH Eaton - Electronics Division

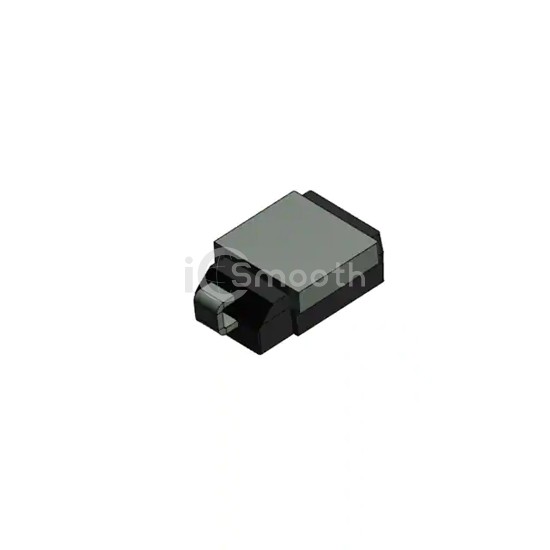

SM8T22AH

Eaton - Electronics Division

TVS DIODE 22VWM 35.5VC UNI

SM8T22AH is a TVS - Diodes manufactured by Eaton - Electronics Division. TVS DIODE 22VWM 35.5VC UNI. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case DO-218AB.

Datasheet Request a Quote

In Stock: 6,627

Tiered Pricing USD

1+ $4.5000 —

10+ $2.9660 -34%

100+ $2.0934 -53% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	1
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	22V
Voltage - Breakdown (Min)	24.4V
Voltage - Clamping (Max) @ Ipp	35.5V
Current - Peak Pulse (10/1000µs)	225A

Power - Peak Pulse	8000W (8kW)
Power Line Protection	No
Applications	Automotive, Telecom
Capacitance @ Frequency	-
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Package / Case	DO-218AB
Supplier Device Package	DO-218AB (SMCJ)
